onsemi-2SC5706-P-E - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	5 A
Voltage - Collector Emitter Breakdown (Max):	100 V
Vce Saturation (Max) @ Ib, Ic:	240mV @ 100mA, 2A
Current - Collector Cutoff (Max):	1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	200 @ 500mA, 2V
Power - Max:	800 mW
Frequency - Transition:	400MHz
Operating Temperature:	-
Mounting Type:	Through Hole
Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package:	TP

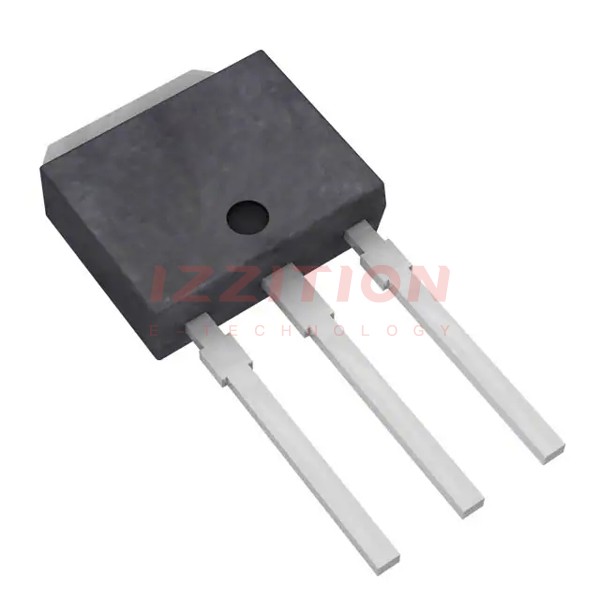

onsemi 2SC5706-P-E
