Please send RFQ , we will respond immediately.

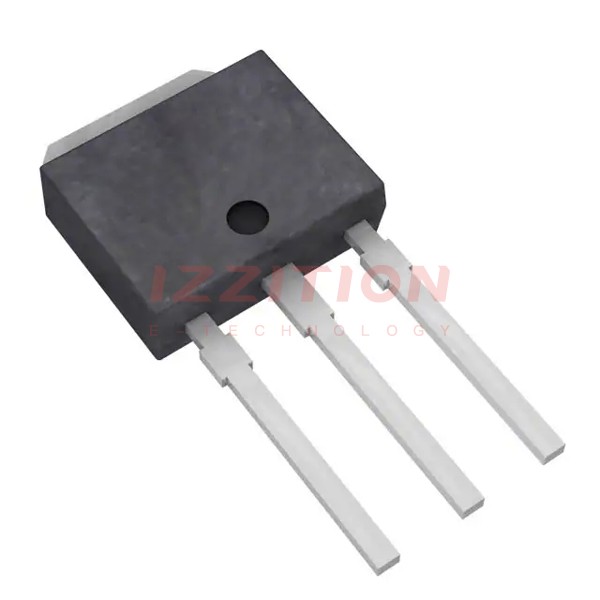

| Part Number | 2SC5706-E | 2SC5706-H | 2SC5707-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 5 A | 5 A | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 240mV @ 100mA, 2A | 240mV @ 100mA, 2A | 240mV @ 175mA, 3.5A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 1µA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 2V | 200 @ 500mA, 2V | 200 @ 500mA, 2V |
| Power - Max | 800 mW | 800 mW | 1 W |
| Frequency - Transition | 400MHz | 400MHz | 330MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
| Supplier Device Package | TP | TP | TP |
