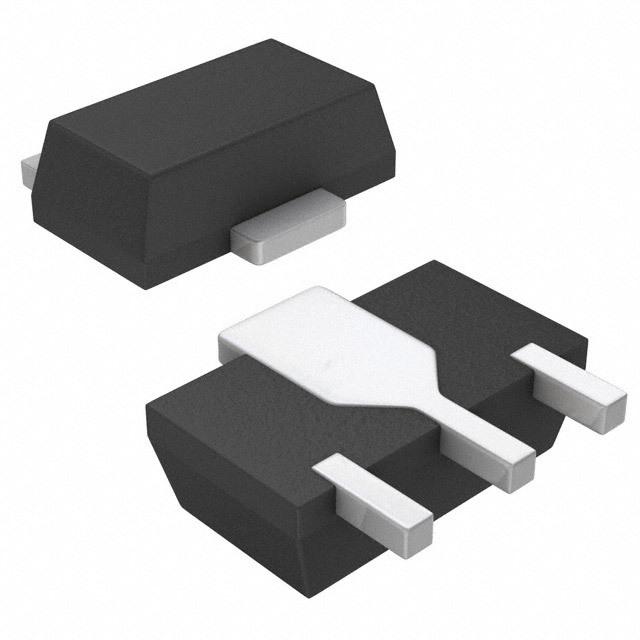

| Part Number | 2SC5551AE-TD-E | 2SC5551AF-TD-E |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Transistor Type | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 30V | 30V |
| Frequency - Transition | 3.5GHz | 3.5GHz |
| Noise Figure (dB Typ @ f) | - | - |
| Gain | - | - |
| Power - Max | 1.3W | 1.3W |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 90 @ 50mA, 5V | 135 @ 50mA, 5V |
| Current - Collector (Ic) (Max) | 300mA | 300mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA |
| Supplier Device Package | PCP | PCP |
