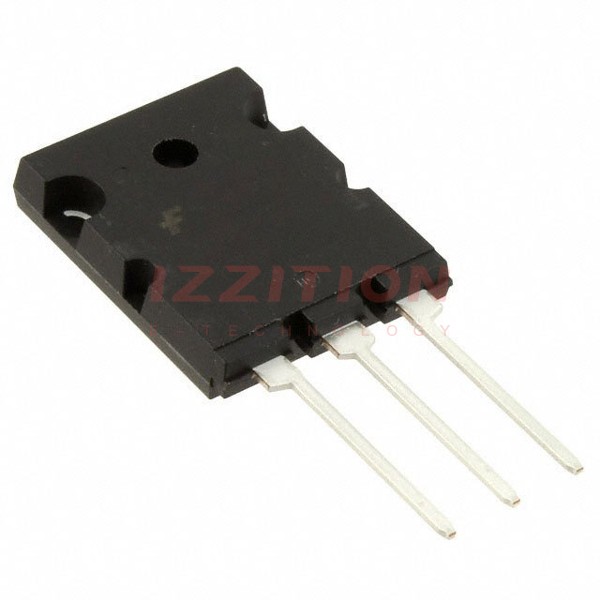

onsemi-2SC5200OTU - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	17 A
Voltage - Collector Emitter Breakdown (Max):	250 V
Vce Saturation (Max) @ Ib, Ic:	3V @ 800mA, 8A
Current - Collector Cutoff (Max):	5µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	80 @ 1A, 5V
Power - Max:	150 W
Frequency - Transition:	30MHz
Operating Temperature:	-50°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-264-3, TO-264AA
Supplier Device Package:	TO-264-3

onsemi 2SC5200OTU
