Please send RFQ , we will respond immediately.

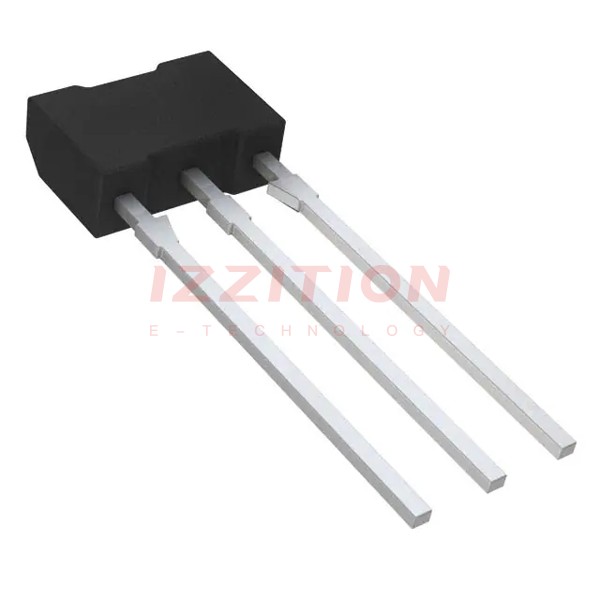

| Part Number | 2SC4489S-AN | 2SC4489T-AN | 2SC4486S-AN | 2SC4488S-AN |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | - | NPN |
| Current - Collector (Ic) (Max) | 2 A | 2 A | - | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 100 V | - | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 100mA, 1A | 400mV @ 100mA, 1A | - | 400mV @ 40mA, 400mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | - | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 140 @ 100mA, 5V | 200 @ 100mA, 5V | - | 100 @ 100mA, 5V |
| Power - Max | 1 W | 1 W | - | 1 W |
| Frequency - Transition | 120MHz | 120MHz | - | 120MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | - | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | SC-71 | SC-71 | SC-71 | SC-71 |
| Supplier Device Package | 3-NMP | 3-NMP | 3-NMP | 3-NMP |
