Please send RFQ , we will respond immediately.

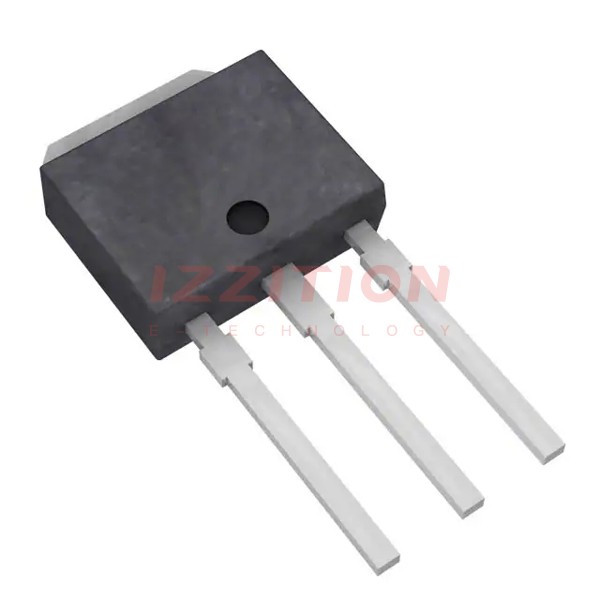

| Part Number | 2SC4134T-E | 2SC4135T-E | 2SC4134S-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 1 A | 2 A | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 100 V | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 40mA, 400mA | 400mV @ 100mA, 1A | 400mV @ 40mA, 400mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 5V | 200 @ 100mA, 5V | 140 @ 100mA, 5V |
| Power - Max | 800 mW | 1 W | 800 mW |
| Frequency - Transition | 120MHz | 120MHz | 120MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
| Supplier Device Package | TP | TP | TP |
