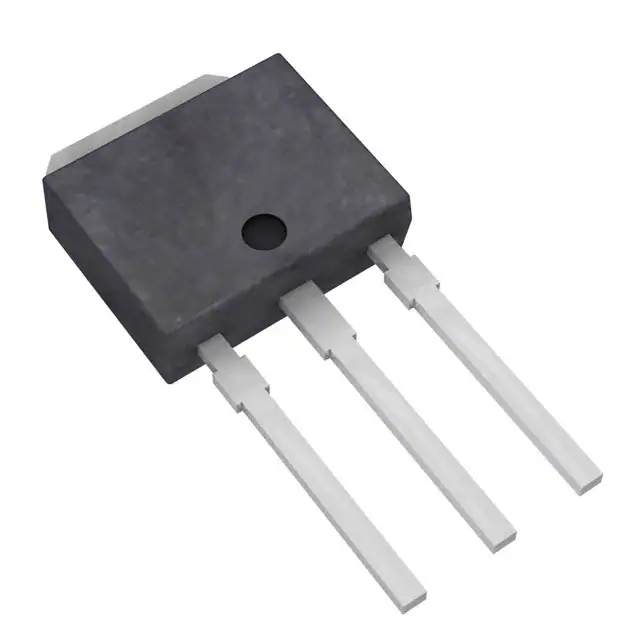

| Part Number | 2SC4027S-H | 2SC4027T-H | 2SC4027S-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 1.5 A | 1.5 A | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 160 V | 160 V | 160 V |
| Vce Saturation (Max) @ Ib, Ic | 450mV @ 50mA, 500mA | 450mV @ 50mA, 500mA | 450mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 1µA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 140 @ 100mA, 5V | 200 @ 100mA, 5V | 100 @ 100mA, 5V |
| Power - Max | 1 W | 1 W | 1 W |
| Frequency - Transition | 120MHz | 120MHz | 120MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
| Supplier Device Package | TP | TP | TP |
