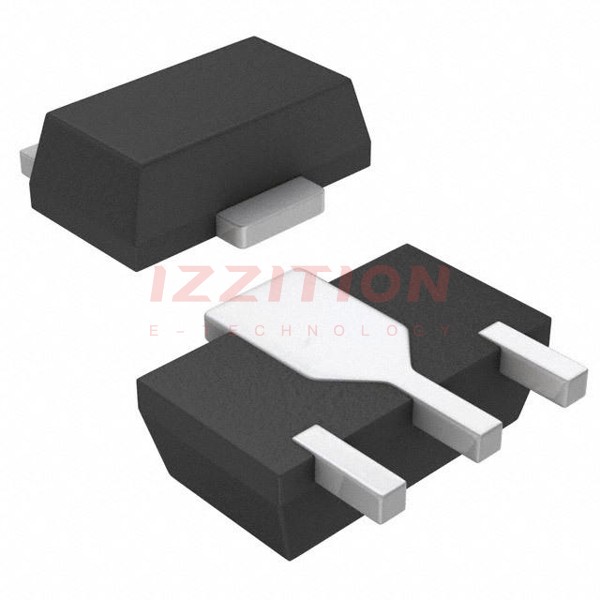

| Part Number | 2SC3646S-P-TD-E | 2SC3646T-P-TD-E |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Obsolete |
| Transistor Type | NPN | NPN |
| Current - Collector (Ic) (Max) | 1 A | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 40mA, 400mA | 400mV @ 40mA, 400mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 140 @ 100mA, 5V | 200 @ 100mA, 5V |
| Power - Max | 500 mW | 500 mW |
| Frequency - Transition | 120MHz | 120MHz |
| Operating Temperature | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA |
| Supplier Device Package | PCP | PCP |
