| Part Number | 2SB1215T-E | 2SB1215T-H | 2SB1216T-E | 2SB1205T-E | 2SB1215S-E |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Not For New Designs | Obsolete | Obsolete | Active |
| Transistor Type | PNP | PNP | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 3 A | 3 A | 4 A | 5 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 100 V | 100 V | 20 V | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 150mA, 1.5A | 500mV @ 150mA, 1.5A | 500mV @ 200mA, 2A | 500mV @ 60mA, 3A | 500mV @ 150mA, 1.5A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 1µA (ICBO) | 1µA (ICBO) | 500nA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 5V | 200 @ 500mA, 5V | 200 @ 500mA, 5V | 200 @ 500mA, 2V | 140 @ 500mA, 5V |
| Power - Max | 1 W | 1 W | 1 W | 1 W | 1 W |
| Frequency - Transition | 130MHz | 130MHz | 130MHz | 320MHz | 130MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

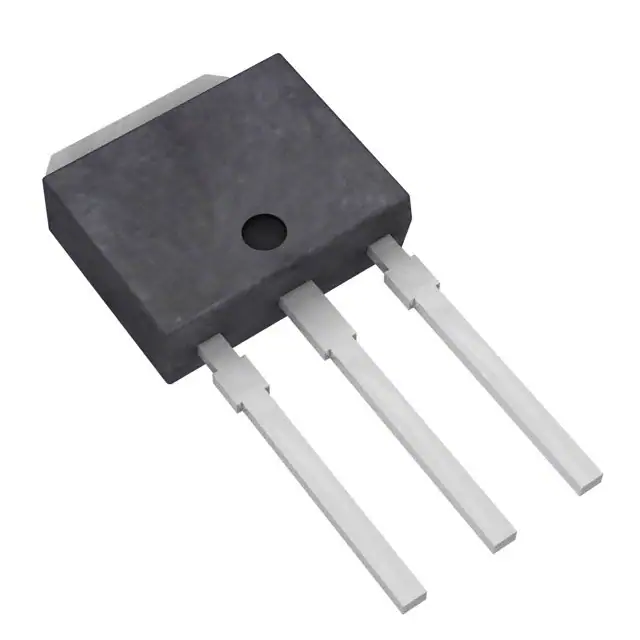

| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
| Supplier Device Package | TP | TP | TP | TP | TP |
