| Part Number | 2SB1203S-E | 2SB1204S-E | 2SB1203S-H | 2SB1203T-E | 2SB1205S-E | 2SB1201S-E | 2SB1202S-E |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Active | Active | Obsolete |
| Transistor Type | PNP | PNP | PNP | PNP | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 5 A | 8 A | 5 A | 5 A | 5 A | 2 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 50 V | 20 V | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 550mV @ 150mA, 3A | 500mV @ 200mA, 4A | 550mV @ 150mA, 3A | 550mV @ 150mA, 3A | 500mV @ 60mA, 3A | 700mV @ 50mA, 1A | 700mV @ 100mA, 2A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 1µA (ICBO) | 1µA (ICBO) | 1µA (ICBO) | 500nA (ICBO) | 100nA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 140 @ 500mA, 2V | 140 @ 500mA, 2V | 140 @ 500mA, 2V | 200 @ 500mA, 2V | 140 @ 500mA, 2V | 140 @ 100mA, 2V | 140 @ 100mA, 2V |
| Power - Max | 1 W | 1 W | 1 W | 1 W | 1 W | 800 mW | 1 W |
| Frequency - Transition | 130MHz | 130MHz | 130MHz | 130MHz | 320MHz | 150MHz | 150MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole |

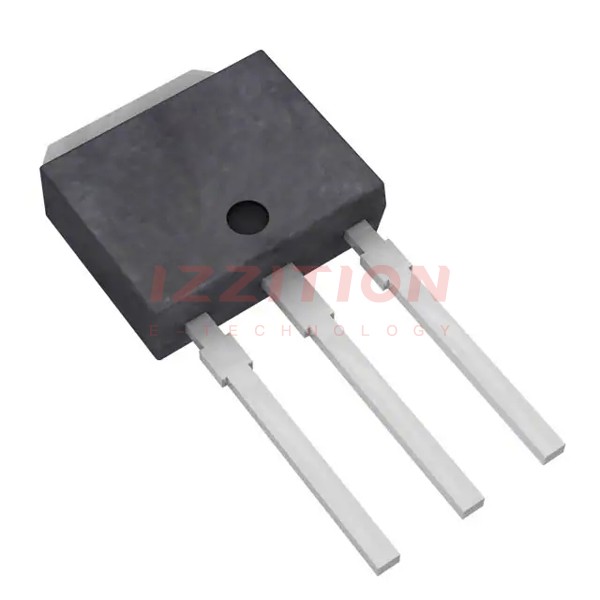

| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-251-3 Short Leads, IPak, TO-251AA |
| Supplier Device Package | TP | TP | TP | TP | TP | TP-FA | TP |
