onsemi-2SB1201T-E - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2SB1201T-E	2SB1204T-E	2SB1205T-E	2SB1202T-E	2SB1203T-E	2SB1201S-E
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Active	Obsolete	Obsolete	Obsolete	Active	Active
Transistor Type	PNP	PNP	PNP	PNP	PNP	PNP
Current - Collector (Ic) (Max)	2 A	8 A	5 A	3 A	5 A	2 A
Voltage - Collector Emitter Breakdown (Max)	50 V	50 V	20 V	50 V	50 V	50 V
Vce Saturation (Max) @ Ib, Ic	700mV @ 50mA, 1A	500mV @ 200mA, 4A	500mV @ 60mA, 3A	700mV @ 100mA, 2A	550mV @ 150mA, 3A	700mV @ 50mA, 1A
Current - Collector Cutoff (Max)	100nA (ICBO)	1µA (ICBO)	500nA (ICBO)	1µA (ICBO)	1µA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 100mA, 2V	200 @ 500mA, 2V	200 @ 500mA, 2V	200 @ 100mA, 2V	200 @ 500mA, 2V	140 @ 100mA, 2V
Power - Max	800 mW	1 W	1 W	1 W	1 W	800 mW
Frequency - Transition	150MHz	130MHz	320MHz	150MHz	130MHz	150MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Surface Mount
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA	TO-251-3 Short Leads, IPak, TO-251AA	TO-251-3 Short Leads, IPak, TO-251AA	TO-251-3 Short Leads, IPak, TO-251AA	TO-251-3 Short Leads, IPak, TO-251AA	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	TP	TP	TP	TP	TP	TP-FA

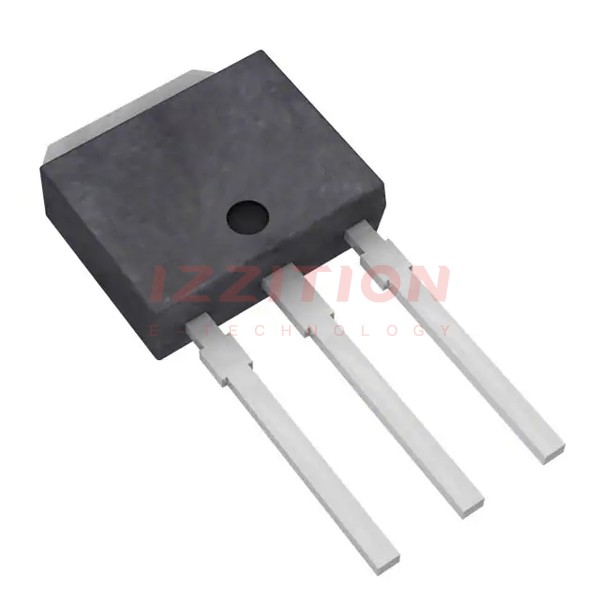

onsemi 2SB1201T-E

Transistor Type:	PNP
Current - Collector (Ic) (Max):	2 A
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	700mV @ 50mA, 1A
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	200 @ 100mA, 2V
Power - Max:	800 mW
Frequency - Transition:	150MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package:	TP
