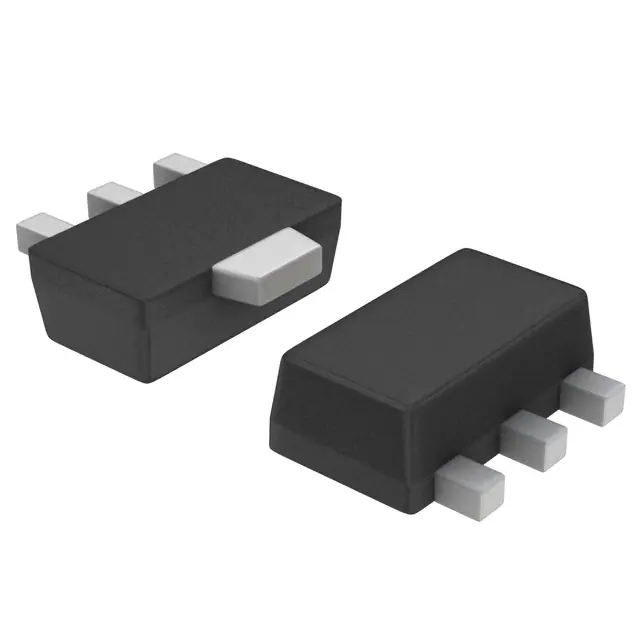

| Part Number | 2SB1124T-TD-H | 2SB1124S-TD-H | 2SB1124T-TD-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete |
| Transistor Type | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 3 A | 3 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 100mA, 2A | 700mV @ 100mA, 2A | 700mV @ 100mA, 2A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 1µA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V | 140 @ 100mA, 2V | 200 @ 100mA, 2V |
| Power - Max | 500 mW | 500 mW | 500 mW |
| Frequency - Transition | 150MHz | 150MHz | 150MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | PCP | PCP | PCP |
