onsemi-2SB1122S-TD-E - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2SB1122S-TD-E	2SB1122T-TD-E	2SB1123S-TD-E	2SB1124S-TD-E	2SB1121S-TD-E
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Obsolete	Active	Obsolete	Obsolete
Transistor Type	PNP	PNP	PNP	PNP	PNP
Current - Collector (Ic) (Max)	1 A	1 A	2 A	3 A	2 A
Voltage - Collector Emitter Breakdown (Max)	50 V	50 V	50 V	50 V	25 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	700mV @ 50mA, 1A	700mV @ 100mA, 2A	600mV @ 75mA, 1.5A
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	1µA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 100mA, 2V	100 @ 100mA, 2V	100 @ 100mA, 2V	140 @ 100mA, 2V	100 @ 100mA, 2V
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW
Frequency - Transition	150MHz	150MHz	150MHz	150MHz	150MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	TO-243AA	TO-243AA	TO-243AA	TO-243AA	TO-243AA
Supplier Device Package	PCP	PCP	PCP	PCP	PCP

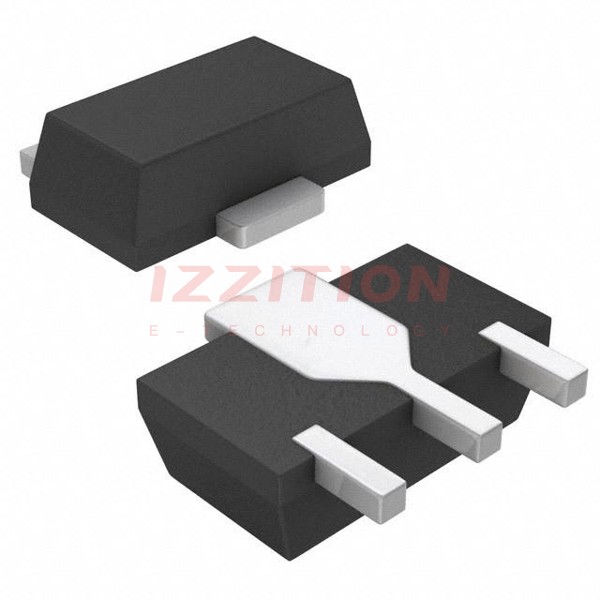

onsemi 2SB1122S-TD-E

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 100mA, 2V
Power - Max:	500 mW
Frequency - Transition:	150MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-243AA
Supplier Device Package:	PCP
