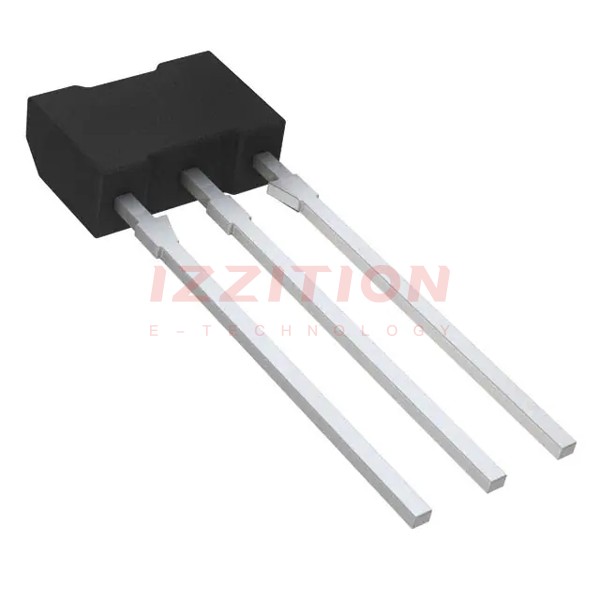

onsemi-2SA2186-AN - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	PNP
Current - Collector (Ic) (Max):	2 A
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	430mV @ 50mA, 1A
Current - Collector Cutoff (Max):	1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	200 @ 100mA, 2V
Power - Max:	900 mW
Frequency - Transition:	420MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	SC-71
Supplier Device Package:	3-NMP

onsemi 2SA2186-AN
