| Part Number | 2SA2126-E | 2SA2126-H |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Transistor Type | PNP | PNP |
| Current - Collector (Ic) (Max) | 3 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 520mV @ 100mA, 2A | 520mV @ 100mA, 2A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V | 200 @ 100mA, 2V |
| Power - Max | 800 mW | 800 mW |
| Frequency - Transition | 390MHz | 390MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

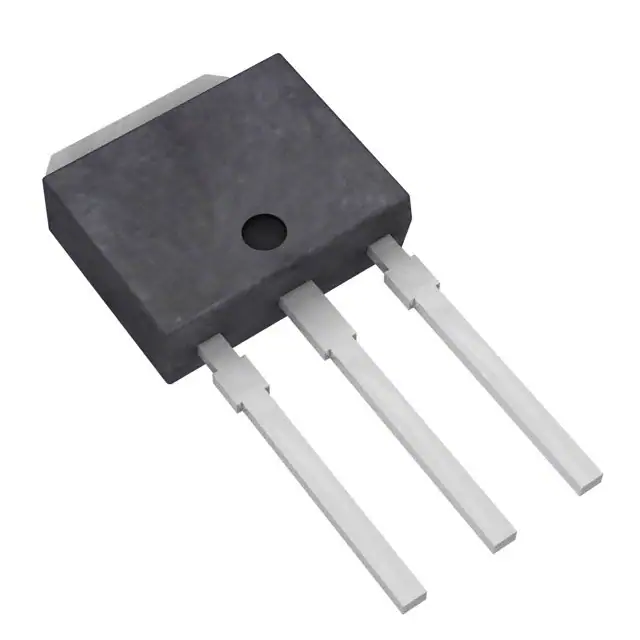

| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
| Supplier Device Package | TP | TP |
