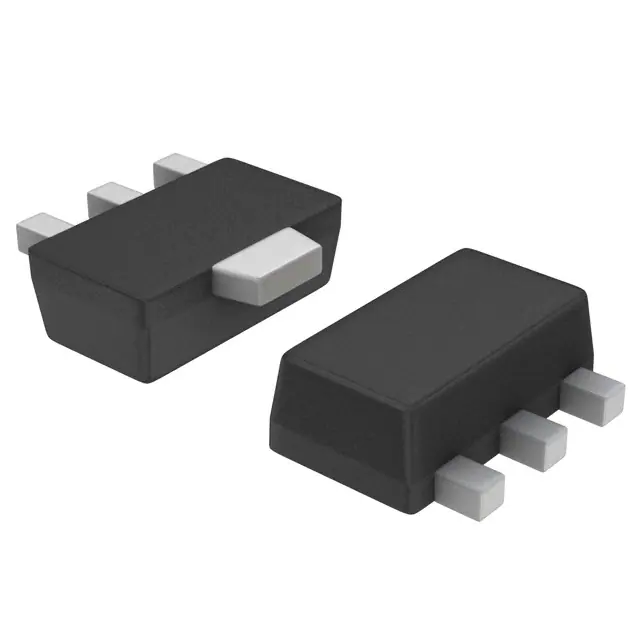

| Part Number | 2SA2015-TD-E | 2SA2016-TD-E | 2SA2011-TD-E | 2SA2012-TD-E | 2SA2013-TD-E | 2SA2014-TD-E |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active |
| Transistor Type | - | PNP | - | PNP | PNP | - |
| Current - Collector (Ic) (Max) | - | 7 A | - | 5 A | 4 A | - |
| Voltage - Collector Emitter Breakdown (Max) | - | 50 V | - | 30 V | 50 V | - |
| Vce Saturation (Max) @ Ib, Ic | - | 400mV @ 40mA, 2A | - | 210mV @ 30mA, 1.5A | 340mV @ 100mA, 2A | - |
| Current - Collector Cutoff (Max) | - | 100nA (ICBO) | - | 100nA (ICBO) | 1µA (ICBO) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | 200 @ 500mA, 2V | - | 200 @ 500mA, 2V | 200 @ 500mA, 2V | - |
| Power - Max | - | 3.5 W | - | 3.5 W | 3.5 W | - |
| Frequency - Transition | - | 330MHz | - | 420MHz | 400MHz | - |
| Operating Temperature | - | 150°C (TJ) | - | 150°C (TJ) | 150°C (TJ) | - |
| Mounting Type | - | Surface Mount | - | Surface Mount | Surface Mount | - |
| Package / Case | - | TO-243AA | - | TO-243AA | TO-243AA | - |
| Supplier Device Package | - | PCP | - | PCP | PCP | - |
