Please send RFQ , we will respond immediately.

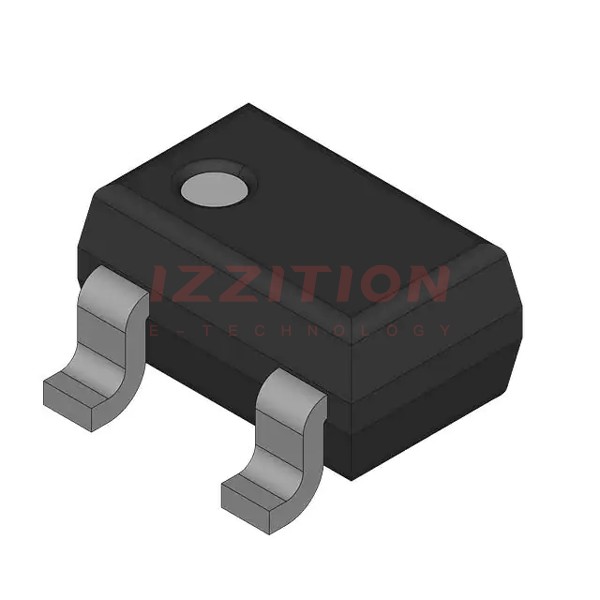

| Part Number | 2SA1707T-AN | 2SA1708T-AN | 2SA1709T-AN | 2SA1705T-AN | 2SA1706T-AN | 2SA1707S-AN |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP | PNP | PNP | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 3 A | 1 A | 2 A | 1 A | 2 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 100 V | 100 V | 50 V | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 100mA, 2A | 600mV @ 40mA, 400mA | 600mV @ 100mA, 1A | 500mV @ 50mA, 500mA | 700mV @ 50mA, 1A | 700mV @ 100mA, 2A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V | 200 @ 100mA, 5V | 200 @ 100mA, 10V | 200 @ 100mA, 2V | 200 @ 100mA, 2V | 140 @ 100mA, 2V |
| Power - Max | 1 W | 1 W | 1 W | 900 mW | 1 W | 1 W |
| Frequency - Transition | 150MHz | 120MHz | 120MHz | 150MHz | 150MHz | 150MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | SC-71 | SC-71 | SC-71 | SC-71 | SC-71 | SC-71 |
| Supplier Device Package | 3-NMP | 3-NMP | 3-NMP | 3-NMP | 3-NMP | 3-NMP |
