Please send RFQ , we will respond immediately.

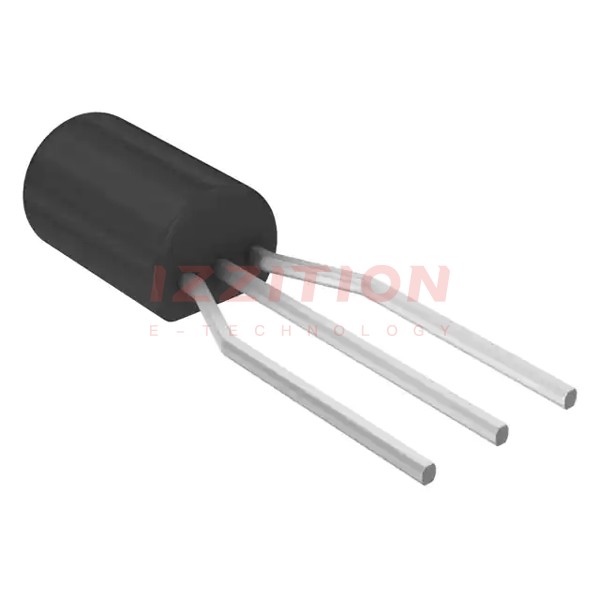

| Part Number | 2SA1020G | 2SA1020 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Transistor Type | PNP | PNP |
| Current - Collector (Ic) (Max) | 2 A | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 1A | 500mV @ 50mA, 1A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 500mA, 2V | 70 @ 500mA, 2V |
| Power - Max | 900 mW | 900 mW |
| Frequency - Transition | 100MHz | 100MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package | TO-92 (TO-226) | TO-92 (TO-226) |
