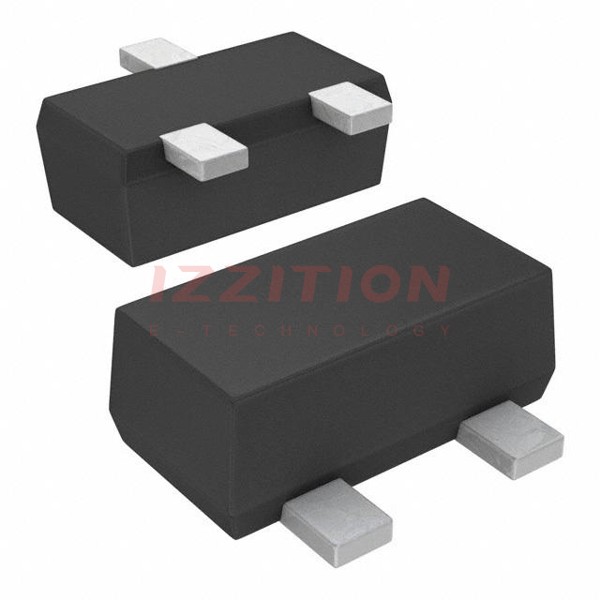

| Part Number | 2N7002T | 2N7002W | 2N7002TA | 2N7002TC | 2N7002A | 2N7002E | 2N7002K | 2N7002L |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Diotec Semiconductor | Diodes Incorporated | Diodes Incorporated | Diotec Semiconductor | Vishay Siliconix | MDD | onsemi |
| Product Status | Active | Active | Obsolete | Obsolete | Active | Discontinued at Digi-Key | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V | 60 V | 60 V | 60 V | 60 V | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 115mA (Ta) | 115mA (Ta) | 115mA (Ta) | 115mA (Ta) | 280mA (Ta) | 240mA (Ta) | 500mA (Ta) | 115mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 5V, 10V | 5V, 10V | 5V, 10V | 5V, 10V | 4.5V, 10V | 4.5V, 10V | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 7.5Ohm @ 50mA, 5V | 13.5Ohm @ 500mA, 10V | 7.5Ohm @ 500mA, 10V | 7.5Ohm @ 500mA, 10V | 2Ohm @ 500mA, 10V | 3Ohm @ 250mA, 10V | 900mOhm @ 300mA, 10V | 7.5Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 2V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | - | - | - | - | 0.6 nC @ 4.5 V | 0.31 nC @ 10 V | - |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±30V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 25 V | 50 pF @ 25 V | 50 pF @ 25 V | 50 pF @ 25 V | 50 pF @ 25 V | 21 pF @ 5 V | 23.8 pF @ 10 V | 50 pF @ 25 V |
| FET Feature | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 200mW (Ta) | 200mW (Ta) | 330mW (Ta) | 330mW (Ta) | 350mW (Ta) | 350mW (Ta) | 500mW (Ta) | 200mW (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-89-3 | SOT-323 | SOT-23-3 | SOT-23-3 | SOT-23-3 (TO-236) | SOT-23-3 (TO-236) | SOT-23 | SOT-23-3 |
| Package / Case | SC-89, SOT-490 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
