onsemi-2KBP08M - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	2KBP08M	2KBP01M	2KBP02M	2KBP04M	2KBP06M
Manufacturer	onsemi	onsemi	onsemi	onsemi	Fairchild Semiconductor
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	800 V	100 V	200 V	400 V	600 V
Current - Average Rectified (Io)	2 A	2 A	2 A	2 A	2 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 3.14 A	1.1 V @ 3.14 A	1.1 V @ 3.14 A	1.1 V @ 3.14 A	1.1 V @ 3.14 A
Current - Reverse Leakage @ Vr	5 µA @ 800 V	5 µA @ 100 V	5 µA @ 200 V	5 µA @ 400 V	5 µA @ 600 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-SIP, KBPM	4-SIP, KBPM	4-SIP, KBPM	4-SIP, KBPM	4-SIP, KBPM
Supplier Device Package	KBPM	KBPM	KBPM	KBPM	KBPM

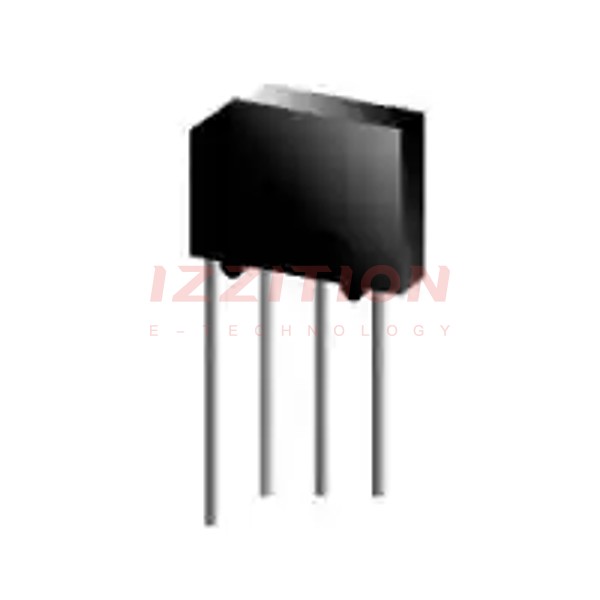

onsemi 2KBP08M

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	800 V
Current - Average Rectified (Io):	2 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 3.14 A
Current - Reverse Leakage @ Vr:	5 µA @ 800 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-SIP, KBPM
Supplier Device Package:	KBPM
