onsemi-1SS383T1G - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	2 Independent
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	40 V
Current - Average Rectified (Io) (per Diode):	300mA (DC)
Voltage - Forward (Vf) (Max) @ If:	600 mV @ 100 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	5 µA @ 40 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Surface Mount

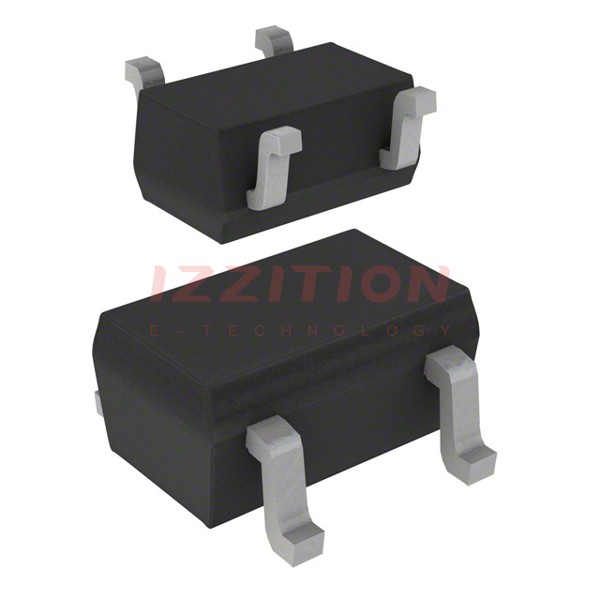

Package / Case:	SC-82
Supplier Device Package:	SC-82

onsemi 1SS383T1G
