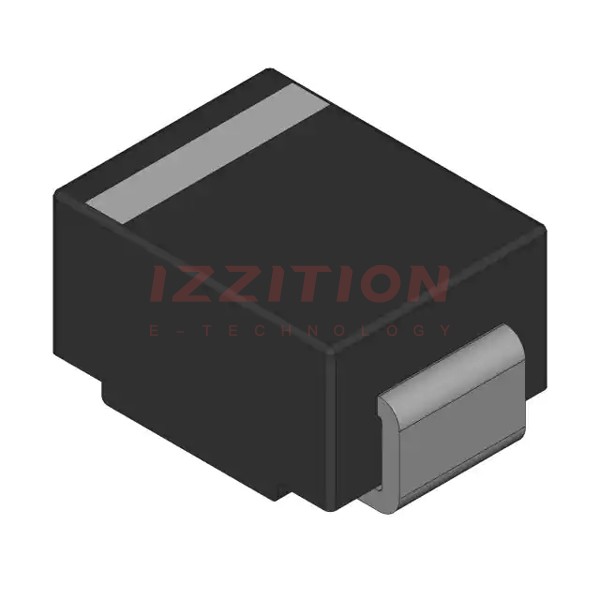

| Part Number | 1SMB5949BT3G | 1SMB5939BT3G | 1SMB5940BT3G | 1SMB5941BT3G | 1SMB5942BT3G | 1SMB5943BT3G | 1SMB5944BT3G | 1SMB5945BT3G | 1SMB5946BT3G | 1SMB5947BT3G | 1SMB5948BT3G | 1SMB5949BT3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Voltage - Zener (Nom) (Vz) | 100 V | 39 V | 43 V | 47 V | 51 V | 56 V | 62 V | 68 V | 75 V | 82 V | 91 V | 100 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 3 W | 3 W | 3 W | 3 W | 3 W | 3 W | 3 W | 3 W | 3 W | 3 W | 3 W | 3 W |
| Impedance (Max) (Zzt) | 250 Ohms | 45 Ohms | 53 Ohms | 67 Ohms | 70 Ohms | 86 Ohms | 100 Ohms | 120 Ohms | 140 Ohms | 160 Ohms | 200 Ohms | 250 Ohms |
| Current - Reverse Leakage @ Vr | 1 µA @ 76 V | 1 µA @ 29.7 V | 1 µA @ 32.7 V | 1 µA @ 35.8 V | 1 µA @ 38.8 V | 1 µA @ 42.6 V | 1 µA @ 47.1 V | 1 µA @ 51.7 V | 1 µA @ 56 V | 1 µA @ 62.2 V | 1 µA @ 69.2 V | 1 µA @ 76 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA |
| Operating Temperature | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB | SMB | SMB | SMB | SMB | SMB | SMB | SMB | SMB | SMB | SMB | SMB |
