Please send RFQ , we will respond immediately.

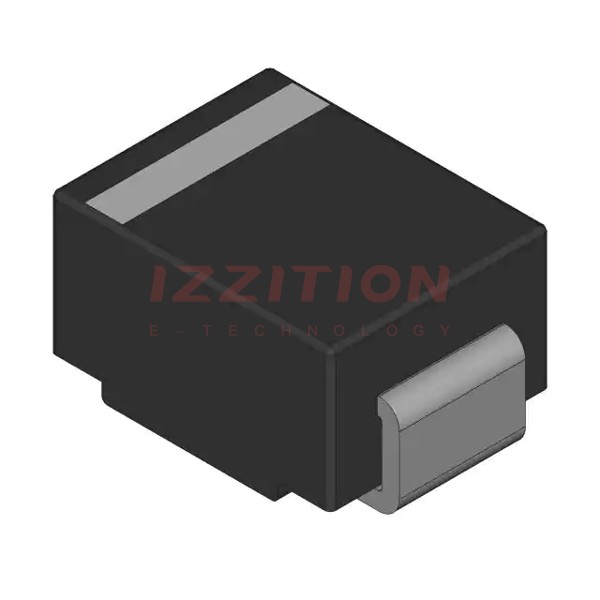

| Part Number | 1SMB24CAT3G | 1SMB64CAT3G | 1SMB26CAT3G | 1SMB54CAT3G | 1SMB28CAT3G | 1SMB14CAT3G | 1SMB20CAT3G | 1SMB22CAT3G | 1SMB24AT3G | 1SMB24CAT3 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | onsemi | Littelfuse Inc. | onsemi | onsemi |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Obsolete | Active | Obsolete | Active | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - | 1 | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 |
| Voltage - Reverse Standoff (Typ) | 24V | 64V | 26V | 54V | 28V | 14V | 20V | 22V | 24V | 24V |
| Voltage - Breakdown (Min) | 26.7V | 71.1V | 28.9V | 60V | 31.1V | 15.6V | 22.2V | 24.4V | 26.7V | 26.7V |
| Voltage - Clamping (Max) @ Ipp | 38.9V | 103V | 42.1V | 87.1V | 45.4V | 23.2V | 32.4V | 35.5V | 38.9V | 38.9V |
| Current - Peak Pulse (10/1000µs) | 15.4A | 5.8A | 14.2A | 6.9A | 13.2A | 25.8A | 18.5A | 16.9A | 15.4A | 15.4A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | Telecom | General Purpose |
| Capacitance @ Frequency | 366pF @ 1MHz | 145pF @ 1MHz | 330pF @ 1MHz | 170pF @ 1MHz | 310pF @ 1MHz | 590pF @ 1MHz | 425pF @ 1MHz | 390pF @ 1MHz | 675pF @ 1MHz | 366pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 425-FBGA | DO-214AA, SMB | 425-FBGA | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | 425-FBGA | DO-214AA, SMB | 425-FBGA | DO-214AA, SMB |
| Supplier Device Package | 425-TEPBGA I (19x19) | SMB | 425-TEPBGA I (19x19) | SMB | SMB | SMB | 425-TEPBGA I (19x19) | SMB | 425-TEPBGA I (19x19) | SMB |
