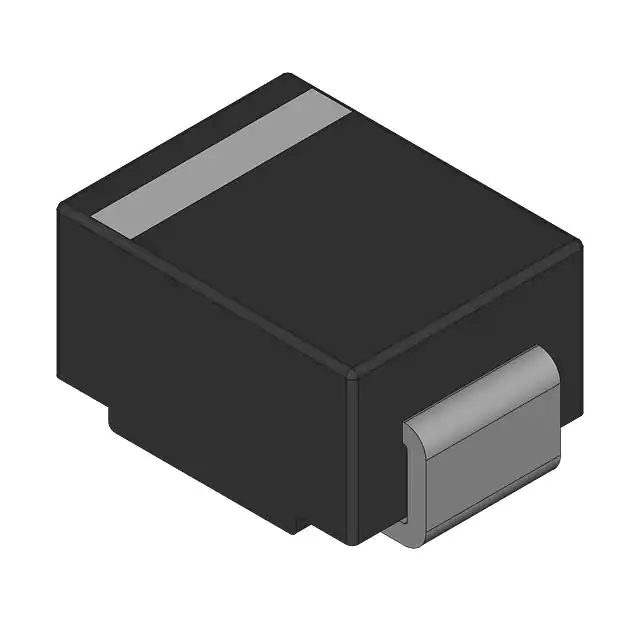

| Part Number | 1SMB14AT3G | 1SMB16AT3G | 1SMB24AT3G | 1SMB15AT3G | 1SMB18AT3G | 1SMB14CAT3G | 1SMB17AT3G | 1SMB10AT3G | 1SMB11AT3G | 1SMB12AT3G | 1SMB13AT3G | 1SMB14AT3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | onsemi | Littelfuse Inc. | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Obsolete | Obsolete | Obsolete | Active | Obsolete | Active | Active | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | 1 | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 14V | 16V | 24V | 15V | 18V | 14V | 17V | 10V | 11V | 12V | 13V | 14V |
| Voltage - Breakdown (Min) | 15.6V | 17.8V | 26.7V | 16.7V | 20V | 15.6V | 18.9V | 11.1V | 12.2V | 13.3V | 14.4V | 15.6V |
| Voltage - Clamping (Max) @ Ipp | 23.2V | 26V | 38.9V | 24.4V | 29.2V | 23.2V | 27.6V | 17V | 18.2V | 19.9V | 21.5V | 23.2V |
| Current - Peak Pulse (10/1000µs) | 25.8A | 23.1A | 15.4A | 24A | 20.5A | 25.8A | 21.7A | 35.3A | 33A | 30.2A | 27.9A | 25.8A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | Telecom | General Purpose | General Purpose | General Purpose | General Purpose | Telecom | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 1085pF @ 1MHz | 965pF @ 1MHz | 675pF @ 1MHz | 1020pF @ 1MHz | 870pF @ 1MHz | 590pF @ 1MHz | 915pF @ 1MHz | 1460pF @ 1MHz | 1345pF @ 1MHz | 1245pF @ 1MHz | 1160pF @ 1MHz | 1085pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | 425-FBGA | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | 425-FBGA | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB | SMB | 425-TEPBGA I (19x19) | SMB | SMB | SMB | SMB | 425-TEPBGA I (19x19) | SMB | SMB | SMB | SMB |
