Please send RFQ , we will respond immediately.
| Part Number | 1SMB10AT3 | 1SMB10AT3G | 1SMB170AT3 | 1SMB18AT3 | 1SMB20AT3 | 1SMB16AT3 | 1SMB15AT3 | 1SMB13AT3 | 1SMB10CAT3 | 1SMB120AT3 | 1SMB12AT3 | 1SMB110AT3 | 1SMB11AT3 | 1SMB130AT3 | 1SMB14AT3 | 1SMB150AT3 | 1SMB160AT3 | 1SMB17AT3 | 1SMB100AT3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | - | Zener | Zener | - | Zener | - | Zener | - | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | - | 1 | 1 | - | 1 | - | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 10V | 10V | 170V | - | 20V | 16V | - | 13V | - | 120V | - | 110V | 11V | 130V | 14V | 150V | 160V | 17V | 100V |
| Voltage - Breakdown (Min) | 11.1V | 11.1V | 189V | - | 22.2V | 17.8V | - | 14.4V | - | 133V | - | 122V | 12.2V | 144V | 15.6V | 167V | 178V | 18.9V | 111V |
| Voltage - Clamping (Max) @ Ipp | 17V | 17V | 275V | - | 32.4V | 26V | - | 21.5V | - | 193V | - | 177V | 18.2V | 209V | 23.2V | 243V | 259V | 27.6V | 162V |
| Current - Peak Pulse (10/1000µs) | 35.3A | 35.3A | 2.2A | - | 18.5A | 23.1A | - | 27.9A | - | 3.1A | - | 3.4A | 33A | 2.9A | 25.8A | 2.5A | 2.3A | 21.7A | 3.7A |
| Power - Peak Pulse | 600W | 600W | 600W | - | 600W | 600W | - | 600W | - | 600W | - | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | - | No | No | - | No | - | No | - | No | No | No | No | No | No | No | No |
| Applications | General Purpose | Telecom | General Purpose | - | General Purpose | General Purpose | - | General Purpose | - | General Purpose | - | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 1460pF @ 1MHz | 1460pF @ 1MHz | 120pF @ 1MHz | - | 790pF @ 1MHz | 965pF @ 1MHz | - | 1160pF @ 1MHz | - | 160pF @ 1MHz | - | 175pF @ 1MHz | 1345pF @ 1MHz | 150pF @ 1MHz | 1085pF @ 1MHz | 135pF @ 1MHz | 125pF @ 1MHz | 915pF @ 1MHz | 190pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | - | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | - | -65°C ~ 150°C (TJ) | - | -65°C ~ 150°C (TJ) | - | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | - | Surface Mount | - | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

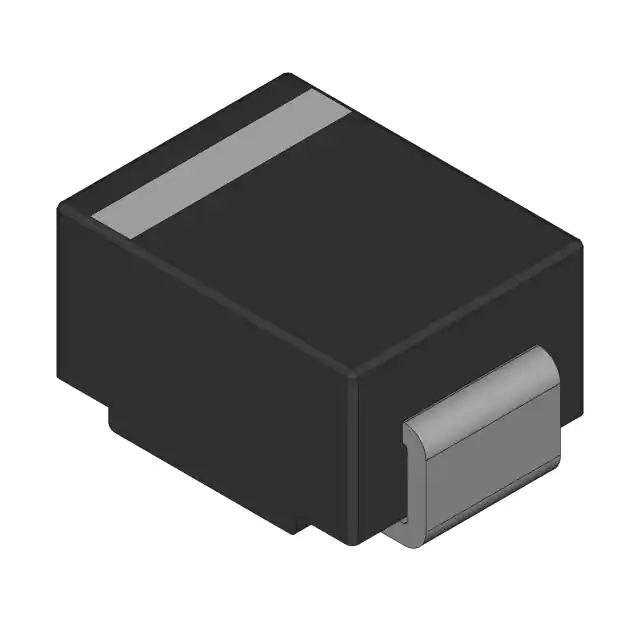

| Package / Case | DO-214AA, SMB | 425-FBGA | DO-214AA, SMB | - | DO-214AA, SMB | DO-214AA, SMB | - | DO-214AA, SMB | - | DO-214AA, SMB | - | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB | 425-TEPBGA I (19x19) | SMB | - | SMB | SMB | - | SMB | - | SMB | - | SMB | SMB | SMB | SMB | SMB | SMB | SMB | SMB |
