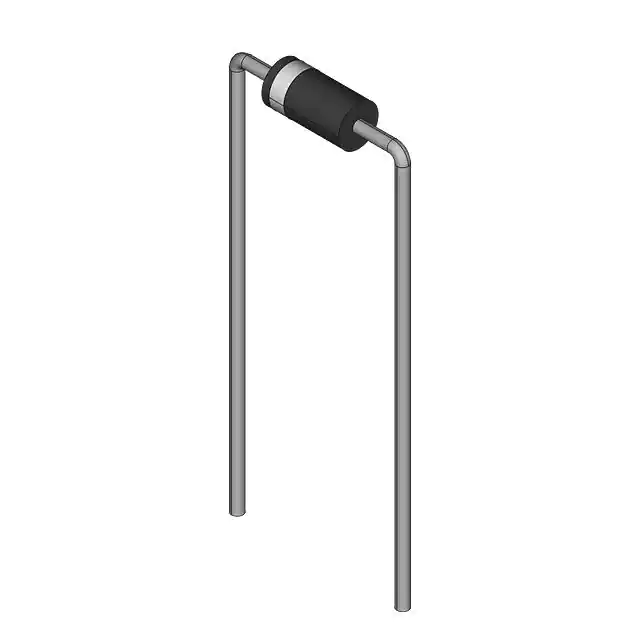

| Part Number | 1N6292AG | 1N6295AG | 1N6294AG | 1N6290AG | 1N6291AG | 1N6292A |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Littelfuse Inc. | Littelfuse Inc. | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 64.1V | 85.5V | 77.8V | 53V | 58.1V | 64.1V |
| Voltage - Breakdown (Min) | 71.3V | 95V | 86.5V | 58.9V | 64.6V | 71.3V |
| Voltage - Clamping (Max) @ Ipp | 103V | 137V | 125V | 85V | 92V | 103V |
| Current - Peak Pulse (10/1000µs) | - | - | - | - | - | - |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial |
