Please send RFQ , we will respond immediately.

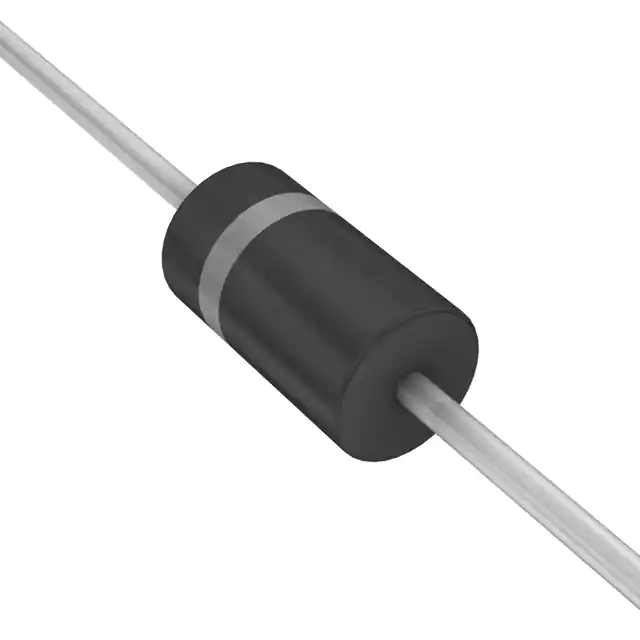

| Part Number | 1N6288ARL4 | 1N6288ARL4G | 1N6289ARL4 | 1N6280ARL4 | 1N6281ARL4 | 1N6282ARL4 | 1N6283ARL4 | 1N6284ARL4 | 1N6285ARL4 | 1N6286ARL4 | 1N6287ARL4 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | - | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | - | 43.6V | 47.8V | 20.5V | 23.1V | 25.6V | 28.2V | 30.8V | 33.3V | 36.8V | 40.2V |
| Voltage - Breakdown (Min) | - | 48.5V | 53.2V | 22.8V | 25.7V | 28.5V | 31.4V | 34.2V | 37.1V | 40.9V | 44.7V |
| Voltage - Clamping (Max) @ Ipp | - | 70.1V | 77V | 33.2V | 37.5V | 41.4V | 45.7V | 49.9V | 53.9V | 59.3V | 64.8V |
| Current - Peak Pulse (10/1000µs) | - | - | - | - | - | - | - | - | - | - | - |
| Power - Peak Pulse | - | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | - | No | No | No | No | No | No | No | No | No | No |
| Applications | - | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | - | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) |
| Mounting Type | - | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | - | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial |
| Supplier Device Package | - | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
