Please send RFQ , we will respond immediately.

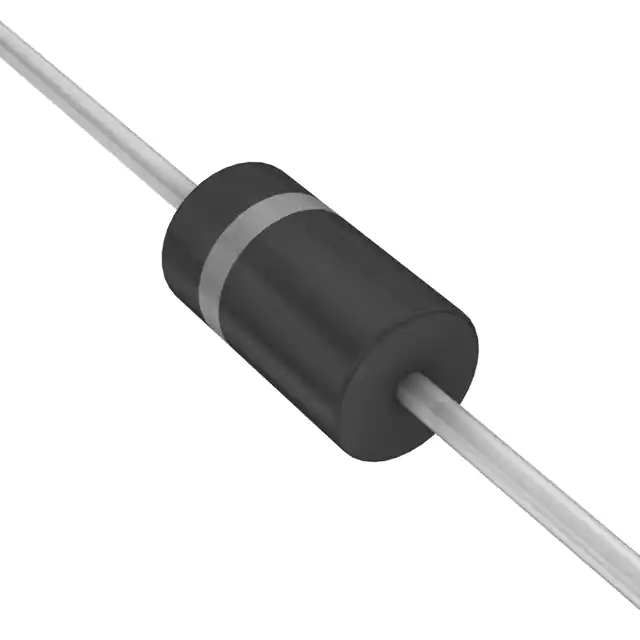

| Part Number | 1N6281ARL4 | 1N6282ARL4 | 1N6288ARL4 | 1N6281ARL4G | 1N6283ARL4 | 1N6284ARL4 | 1N6285ARL4 | 1N6286ARL4 | 1N6287ARL4 | 1N6289ARL4 | 1N6280ARL4 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | - | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 23.1V | 25.6V | - | 23.1V | 28.2V | 30.8V | 33.3V | 36.8V | 40.2V | 47.8V | 20.5V |
| Voltage - Breakdown (Min) | 25.7V | 28.5V | - | 25.7V | 31.4V | 34.2V | 37.1V | 40.9V | 44.7V | 53.2V | 22.8V |
| Voltage - Clamping (Max) @ Ipp | 37.5V | 41.4V | - | 37.5V | 45.7V | 49.9V | 53.9V | 59.3V | 64.8V | 77V | 33.2V |
| Current - Peak Pulse (10/1000µs) | - | - | - | - | - | - | - | - | - | - | - |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | - | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | - | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | - | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | - | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | - | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AD, Axial | DO-201AD, Axial | - | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial |
| Supplier Device Package | Axial | Axial | - | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
