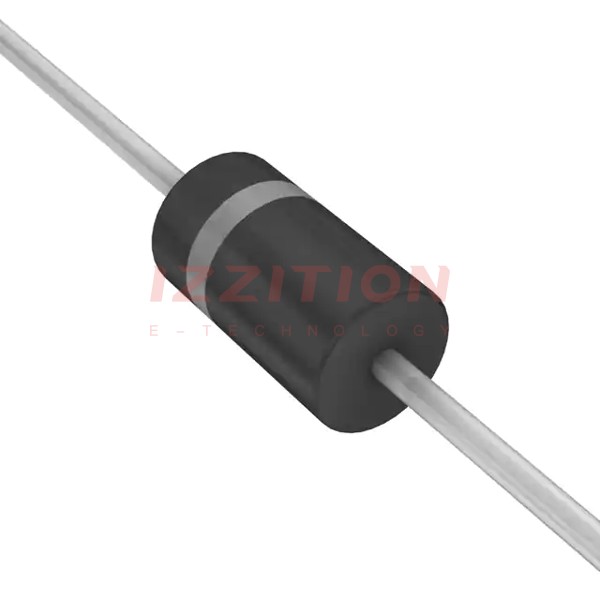

| Part Number | 1N6277A | 1N6277AG | 1N6278A | 1N6279A | 1N6267A | 1N6270A | 1N6271A | 1N6272A | 1N6274A | 1N6275A | 1N6276A |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Littelfuse Inc. | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener | - | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 15.3V | 15.3V | 17.1V | 18.8V | 5.8V | - | 8.55V | 9.4V | 11.1V | 12.8V | 13.6V |
| Voltage - Breakdown (Min) | 17.1V | 17.1V | 19V | 20.9V | 6.45V | - | 9.5V | 10.5V | 12.4V | 14.3V | 15.2V |
| Voltage - Clamping (Max) @ Ipp | 25.2V | 25.2V | 27.7V | 30.6V | 10.5V | - | 14.5V | 15.6V | 18.2V | 21.2V | 22.5V |
| Current - Peak Pulse (10/1000µs) | - | - | - | - | - | - | - | - | - | - | - |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | - | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | - | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | - | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | - | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | - | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | - | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | - | Axial | Axial | Axial | Axial | Axial |
