Please send RFQ , we will respond immediately.

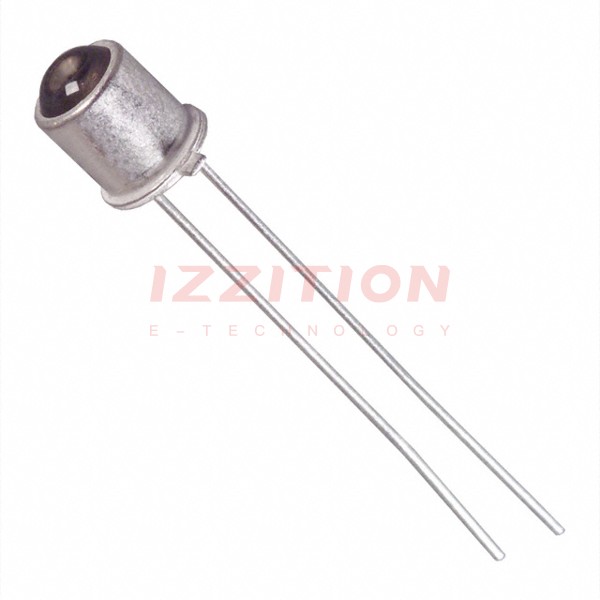

| Part Number | 1N6266 | 1N6264 | 1N6265 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA | 100mA | 100mA |
| Radiant Intensity (Ie) Min @ If | 25mW/sr @ 100mA | - | - |
| Wavelength | 940nm | 940nm | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.7V | 1.7V | 1.7V |
| Viewing Angle | 20° | 16° | 80° |
| Orientation | Top View | Top View | Top View |
| Operating Temperature | -65°C ~ 125°C (TA) | -65°C ~ 125°C (TA) | -65°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-46-2 Lens Top Metal Can | TO-46-2 Lens Top Metal Can | TO-46-2 Metal Can |
