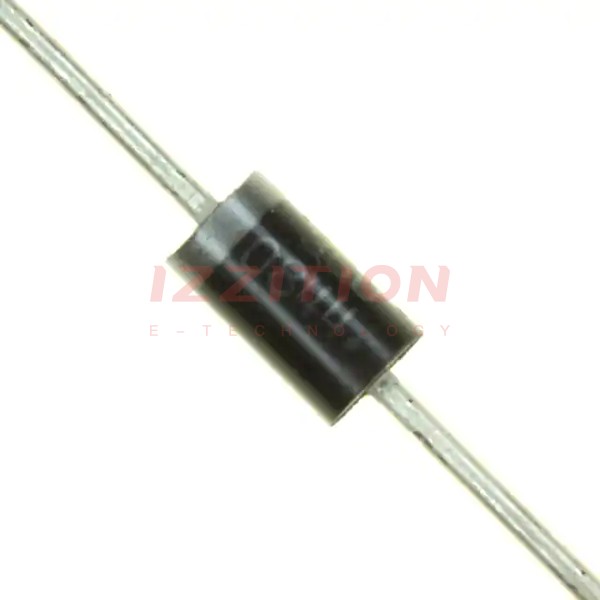

| Part Number | 1N5820G | 1N5822G | 1N5820H | 1N5821G | 1N5820 |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | Taiwan Semiconductor Corporation | onsemi | NTE Electronics, Inc |
| Product Status | Active | Active | Active | Obsolete | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V | 40 V | 20 V | 30 V | 20 V |
| Current - Average Rectified (Io) | 3A | 3A | 3A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 475 mV @ 3 A | 525 mV @ 3 A | 475 mV @ 3 A | 500 mV @ 3 A | 475 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 2 mA @ 20 V | 2 mA @ 40 V | 500 µA @ 20 V | 2 mA @ 30 V | 500 µA @ 20 V |
| Capacitance @ Vr, F | - | - | 200pF @ 4V, 1MHz | - | 190pF @ 4V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AD, Axial | DO-201AA, DO-27, Axial | DO-201AD, Axial |
| Supplier Device Package | Axial | Axial | DO-201AD | Axial | DO-201AD |
| Operating Temperature - Junction | -65°C ~ 125°C | -65°C ~ 125°C | -55°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C |
