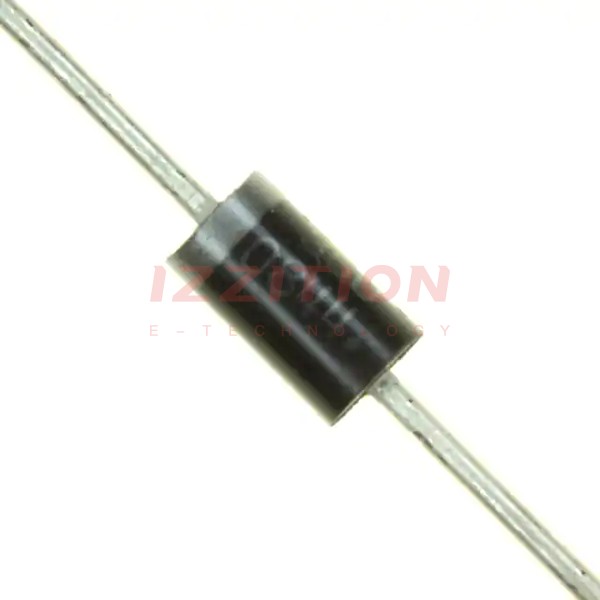

onsemi-1N5406RL - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	1N5406RL	1N5406RLG	1N5408RL	1N5407RL	1N5401RL	1N5402RL	1N5404RL
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Active	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	600 V	600 V	1000 V	800 V	100 V	200 V	400 V
Current - Average Rectified (Io)	3A	3A	3A	3A	3A	3A	3A
Voltage - Forward (Vf) (Max) @ If	1 V @ 3 A	1 V @ 3 A	1 V @ 3 A	1 V @ 3 A	1 V @ 3 A	1 V @ 3 A	1 V @ 3 A
Speed	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-	-	-	-	-	-	-
Current - Reverse Leakage @ Vr	10 µA @ 600 V	10 µA @ 600 V	10 µA @ 1000 V	10 µA @ 800 V	10 µA @ 100 V	10 µA @ 200 V	10 µA @ 400 V
Capacitance @ Vr, F	-	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-201AA, DO-27, Axial	DO-201AA, DO-27, Axial	DO-201AA, DO-27, Axial	DO-201AA, DO-27, Axial	DO-201AA, DO-27, Axial	DO-201AA, DO-27, Axial	DO-201AA, DO-27, Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Operating Temperature - Junction	-65°C ~ 170°C	-65°C ~ 150°C	-65°C ~ 170°C	-65°C ~ 170°C	-65°C ~ 170°C	-65°C ~ 170°C	-65°C ~ 170°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	3A
Voltage - Forward (Vf) (Max) @ If:	1 V @ 3 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	10 µA @ 600 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	DO-201AA, DO-27, Axial
Supplier Device Package:	Axial
Operating Temperature - Junction:	-65°C ~ 170°C

onsemi 1N5406RL
