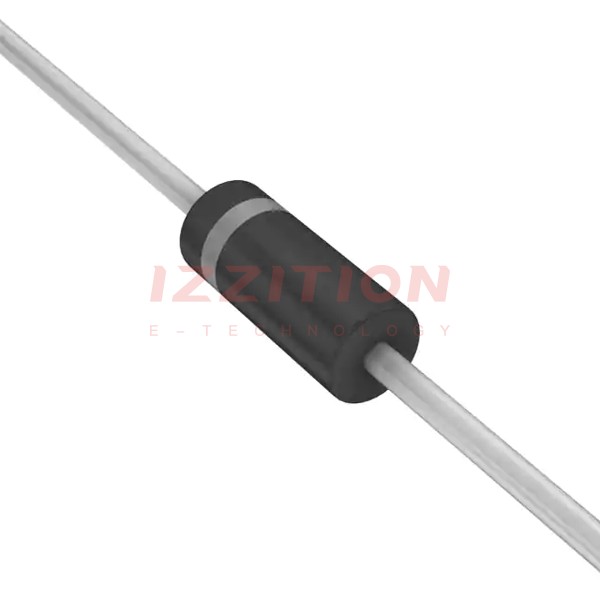

onsemi-1N5336BG - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	1N5336BG	1N5337BG	1N5339BG	1N5338BG	1N5346BG	1N5333BG	1N5334BG	1N5335BG	1N5336B
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	NTE Electronics, Inc
Product Status	Active	Active	Active	Active	Active	Active	Obsolete	Active	Active
Voltage - Zener (Nom) (Vz)	4.3 V	4.7 V	5.6 V	5.1 V	9.1 V	3.3 V	3.6 V	3.9 V	4.3 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W
Impedance (Max) (Zzt)	2 Ohms	2 Ohms	1 Ohms	1.5 Ohms	2 Ohms	3 Ohms	2.5 Ohms	2 Ohms	2 Ohms
Current - Reverse Leakage @ Vr	10 µA @ 1 V	5 µA @ 1 V	1 µA @ 2 V	1 µA @ 1 V	7.5 µA @ 6.9 V	300 µA @ 1 V	150 µA @ 1 V	50 µA @ 1 V	10 µA @ 1 V
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A
Operating Temperature	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	T-18, Axial	T-18, Axial	T-18, Axial	T-18, Axial	T-18, Axial	T-18, Axial	T-18, Axial	T-18, Axial	T-18, Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial

onsemi 1N5336BG
