onsemi-1N5334BRL - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	1N5334BRL	1N5334BRLG	1N5335BRL	1N5338BRL	1N5339BRL	1N5344BRL	1N5336BRL	1N5337BRL	1N5333BRL
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Active	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Voltage - Zener (Nom) (Vz)	3.6 V	3.6 V	3.9 V	5.1 V	5.6 V	8.2 V	4.3 V	4.7 V	3.3 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W
Impedance (Max) (Zzt)	2.5 Ohms	2.5 Ohms	2 Ohms	1.5 Ohms	1 Ohms	1.5 Ohms	2 Ohms	2 Ohms	3 Ohms
Current - Reverse Leakage @ Vr	150 µA @ 1 V	150 µA @ 1 V	50 µA @ 1 V	1 µA @ 1 V	1 µA @ 2 V	10 µA @ 6.2 V	10 µA @ 1 V	5 µA @ 1 V	300 µA @ 1 V
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A	1.2 V @ 1 A
Operating Temperature	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	T-18, Axial	T-18, Axial	T-18, Axial	T-18, Axial	T-18, Axial	T-18, Axial	T-18, Axial	T-18, Axial	T-18, Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial

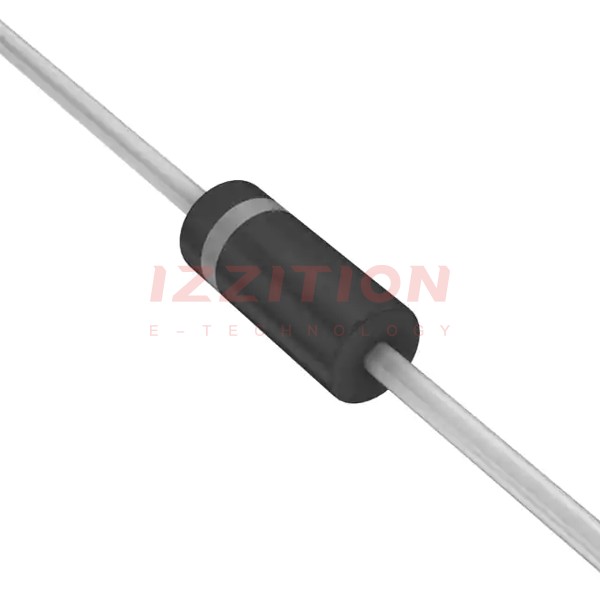

onsemi 1N5334BRL
