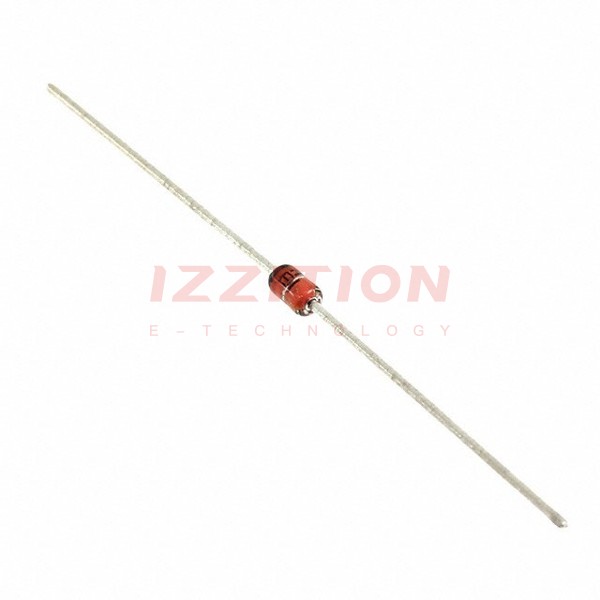

| Part Number | 1N4750A_S00Z | 1N4751A_S00Z | 1N4752A_S00Z |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 27 V | 30 V | 33 V |
| Tolerance | ±5% | ±5% | ±5% |
| Power - Max | 1 W | 1 W | 1 W |
| Impedance (Max) (Zzt) | 35 Ohms | 40 Ohms | 45 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 20.6 V | 5 µA @ 22.8 V | 5 µA @ 25.1 V |
| Voltage - Forward (Vf) (Max) @ If | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 | DO-41 | DO-41 |
