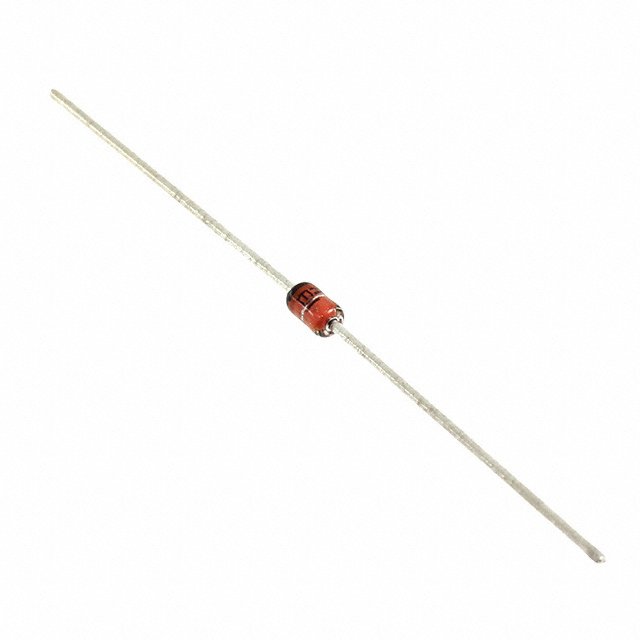

| Part Number | 1N4749A_S00Z | 1N4747A_S00Z | 1N4748A_S00Z |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 24 V | 20 V | 22 V |
| Tolerance | ±5% | ±5% | ±5% |
| Power - Max | 1 W | 1 W | 1 W |
| Impedance (Max) (Zzt) | 25 Ohms | 22 Ohms | 23 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 18.2 V | 5 µA @ 15.2 V | 5 µA @ 16.7 V |
| Voltage - Forward (Vf) (Max) @ If | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 | DO-41 | DO-41 |
