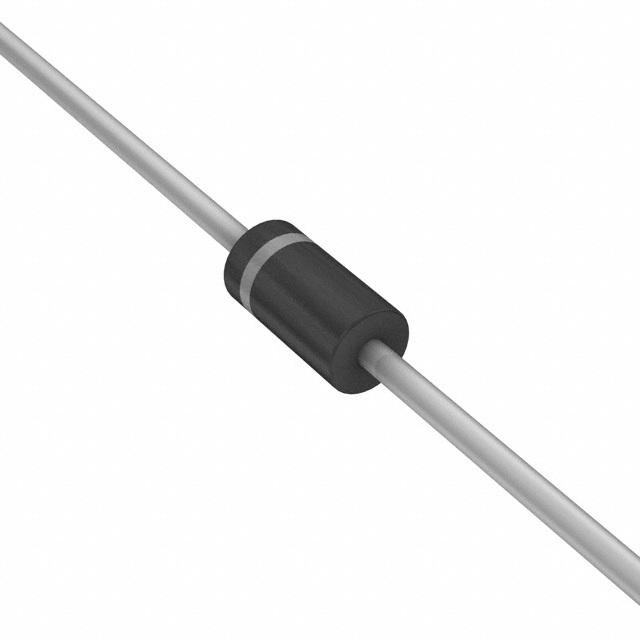

| Part Number | 1N4744ATR | 1N4745ATR | 1N4746ATR | 1N4744AUR | 1N4742ATR | 1N4743ATR | 1N4744A-TR |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Microchip Technology | onsemi | onsemi | Vishay General Semiconductor - Diodes Division |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 15 V | 16 V | 18 V | 15 V | 12 V | 13 V | 15 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W | 1.3 W |
| Impedance (Max) (Zzt) | 14 Ohms | 16 Ohms | 20 Ohms | 14 Ohms | 9 Ohms | 10 Ohms | 14 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 11.4 V | 5 µA @ 12.2 V | 5 µA @ 13.7 V | 5 µA @ 11.4 V | 5 µA @ 9.1 V | 5 µA @ 9.9 V | 5 µA @ 11.4 V |
| Voltage - Forward (Vf) (Max) @ If | - | - | - | 1.2 V @ 200 mA | - | - | 1.2 V @ 200 mA |
| Operating Temperature | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 175°C | -65°C ~ 200°C | -65°C ~ 200°C | 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-213AB, MELF | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 | DO-41 | DO-41 | DO-213AB | DO-41 | DO-41 | DO-204AL (DO-41) |
