Please send RFQ , we will respond immediately.

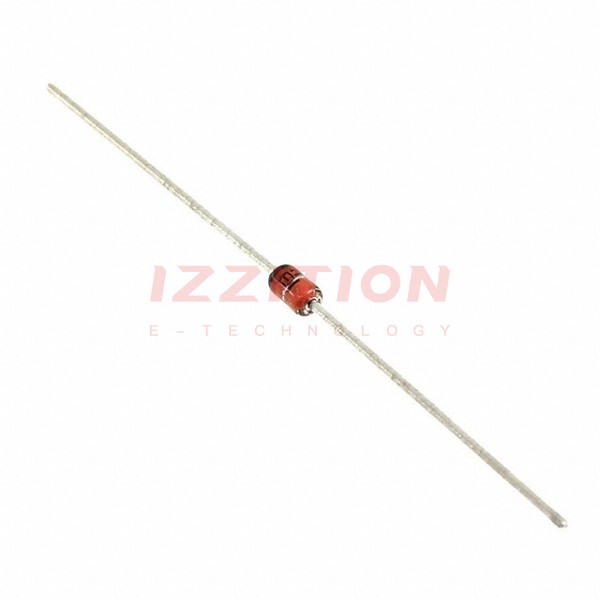

| Part Number | 1N4741A_S00Z | 1N4742A_S00Z | 1N4743A_S00Z | 1N4740A_S00Z |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 11 V | 12 V | 13 V | 10 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 1 W | 1 W | 1 W | 1 W |
| Impedance (Max) (Zzt) | 8 Ohms | 9 Ohms | 10 Ohms | 7 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 8.4 V | 5 µA @ 9.1 V | 5 µA @ 9.9 V | 10 µA @ 7.6 V |
| Voltage - Forward (Vf) (Max) @ If | - | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 | DO-41 | DO-41 | DO-41 |
