Please send RFQ , we will respond immediately.

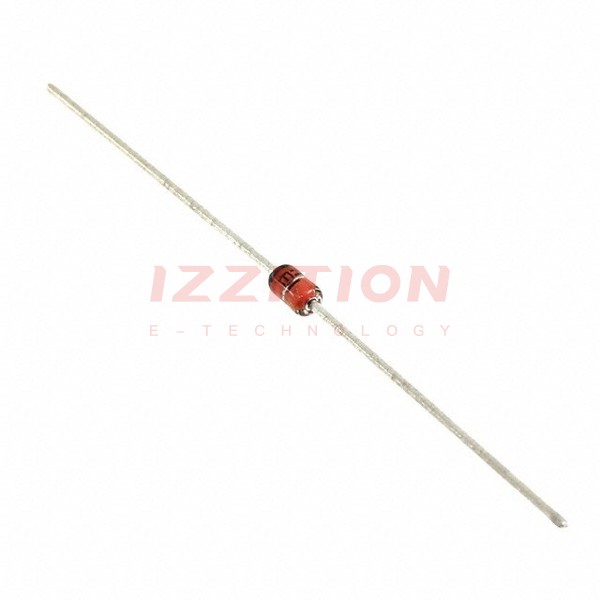

| Part Number | 1N4736A_S00Z | 1N4737A_S00Z | 1N4738A_S00Z | 1N4734A_S00Z | 1N4735A_S00Z |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 6.8 V | 7.5 V | 8.2 V | 5.6 V | 6.2 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 1 W | 1 W | 1 W | 1 W | 1 W |
| Impedance (Max) (Zzt) | 3.5 Ohms | 4 Ohms | 4.5 Ohms | 5 Ohms | 2 Ohms |
| Current - Reverse Leakage @ Vr | 10 µA @ 4 V | 10 µA @ 5 V | 10 µA @ 6 V | 10 µA @ 2 V | 10 µA @ 3 V |
| Voltage - Forward (Vf) (Max) @ If | - | - | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 | DO-41 | DO-41 | DO-41 | DO-41 |
