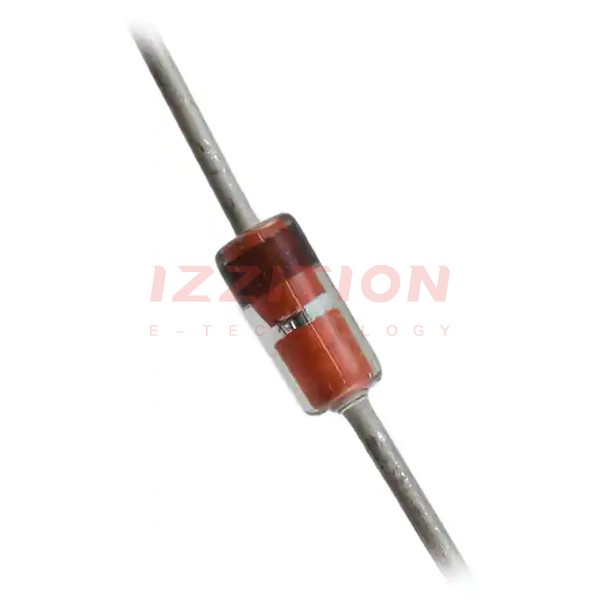

onsemi-1N459A_L99Z - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	200 V
Current - Average Rectified (Io):	500mA
Voltage - Forward (Vf) (Max) @ If:	1 V @ 100 mA
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	25 nA @ 175 V
Capacitance @ Vr, F:	6pF @ 0V, 1MHz
Mounting Type:	Through Hole
Package / Case:	DO-204AH, DO-35, Axial
Supplier Device Package:	DO-35
Operating Temperature - Junction:	175°C (Max)

onsemi 1N459A_L99Z
