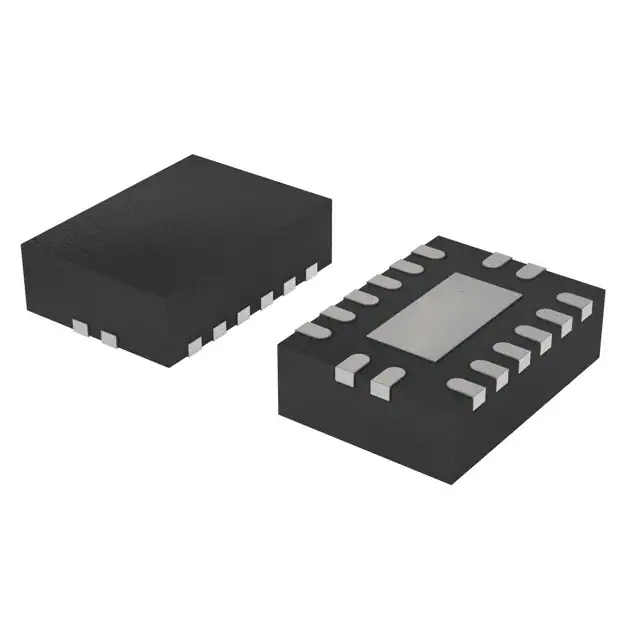

| Part Number | TFF1012HN/N1,135 | TFF1018HN/N1,135 | TFF1014HN/N1,135 | TFF1015HN/N1,135 | TFF1017HN/N1,135 | TFF1013HN/N1,135 | TFF1012HN/N1,115 |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP Semiconductors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| RF Type | Ku-Band | Ku-Band | Ku-Band | Ku-Band | Ku-Band | Ku-Band | Ku-Band |
| Frequency | 10.7GHz ~ 12.75GHz | 10.7GHz ~ 12.75GHz | 10.7GHz ~ 12.75GHz | 10.7GHz ~ 12.75GHz | 10.7GHz ~ 12.75GHz | 10.7GHz ~ 12.75GHz | 10.7GHz ~ 12.75GHz |
| Number of Mixers | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Gain | 30dB | 45dB | 36dB | 39dB | 42dB | 33dB | 30dB |
| Noise Figure | 9dB | 7dB | 7dB | 7dB | 7dB | 9dB | 9dB |
| Secondary Attributes | - | Down Converter | Down Converter | Down Converter | Down Converter | Down Converter | Down Converter |
| Current - Supply | 52mA | 52mA | 52mA | 52mA | 52mA | 52mA | 52mA |
| Voltage - Supply | 5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 5V | 4.5V ~ 5.5V |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-DHVQFN (2.5x3.5) | 16-DHVQFN (2.5x3.5) | 16-DHVQFN (2.5x3.5) | 16-DHVQFN (2.5x3.5) | 16-DHVQFN (2.5x3.5) | 16-DHVQFN (2.5x3.5) | 16-DHVQFN (2.5x3.5) |
