Please send RFQ , we will respond immediately.

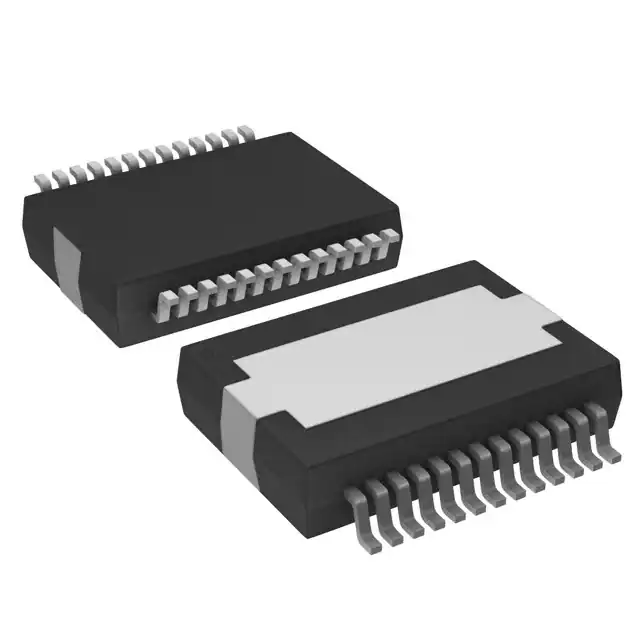

| Part Number | TDF8591TH/N1,118 | TDF8597TH/N1,118 | TDF8591TH/N1S,118 | TDF8590TH/N1,118 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | Class D | Class D | Class D | Class D |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 310W x 1 @ 4Ohm; 100W x 2 @ 4Ohm | 150W x 1 @ 1Ohm; 100W x 2 @ 2Ohm | 310W x 1 @ 4Ohm; 100W x 2 @ 4Ohm | 160W x 1 @ 8Ohm; 80W x 2 @ 4Ohm |
| Voltage - Supply | ±14V ~ 29V | 6V ~ 24V | ±14V ~ 29V | ±14V ~ 29V |
| Features | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby | Depop, Differential Inputs, I²C, Mute, Short-Circuit and Thermal Protection, Standby | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Supplier Device Package | 24-HSOP | 36-HSOP | 24-HSOP | 24-HSOP |
| Package / Case | 24-BSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 24-BSOP (0.433", 11.00mm Width) Exposed Pad | 24-BSOP (0.433", 11.00mm Width) Exposed Pad |
