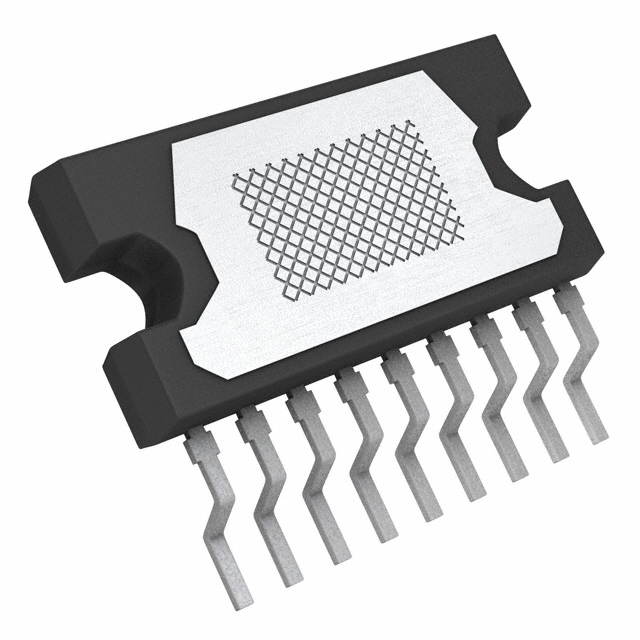

TDA1519CSP/N3,118
  • Share:

NXP USA Inc. TDA1519CSP/N3,118

Manufacturer No:
TDA1519CSP/N3,118
Manufacturer:
NXP USA Inc.
Package:
Tape & Reel (TR)
Datasheet:
TDA1519CSP/N3,118 Datasheet
ECAD Model:
-
Description:
IC AMP CLSS B MONO/STER 22W 9SMS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Class B
Output Type:1-Channel (Mono) or 2-Channel (Stereo)
Max Output Power x Channels @ Load:22W x 1 @ 4Ohm; 11W x 2 @ 2Ohm
Voltage - Supply:6V ~ 17.5V
Features:Depop, Mute, Short-Circuit and Thermal Protection, Standby
Mounting Type:Through Hole
Operating Temperature:-25°C ~ 150°C (TJ)
Supplier Device Package:9-SMS
Package / Case:SOT-354-1
0 Remaining View Similar

In Stock

-
165

Please send RFQ , we will respond immediately.

Similar Products

Part Number TDA1519CSP/N3,118 TDA1519CSP/N3C,118   TDA1519CSP/N3,112
Manufacturer NXP USA Inc. NXP USA Inc. NXP USA Inc.
Product Status Obsolete Obsolete Obsolete
Type Class B Class B Class B
Output Type 1-Channel (Mono) or 2-Channel (Stereo) 1-Channel (Mono) or 2-Channel (Stereo) 1-Channel (Mono) or 2-Channel (Stereo)
Max Output Power x Channels @ Load 22W x 1 @ 4Ohm; 11W x 2 @ 2Ohm 22W x 1 @ 4Ohm; 11W x 2 @ 2Ohm 22W x 1 @ 4Ohm; 11W x 2 @ 2Ohm
Voltage - Supply 6V ~ 17.5V 6V ~ 17.5V 6V ~ 17.5V
Features Depop, Mute, Short-Circuit and Thermal Protection, Standby Depop, Mute, Short-Circuit and Thermal Protection, Standby Depop, Mute, Short-Circuit and Thermal Protection, Standby
Mounting Type Through Hole Through Hole Through Hole
Operating Temperature -25°C ~ 150°C (TJ) -25°C ~ 150°C (TJ) -25°C ~ 150°C (TJ)
Supplier Device Package 9-SMS 9-SMS 9-SMS
Package / Case SOT-354-1 SOT-354-1 SOT-354-1
