Please send RFQ , we will respond immediately.

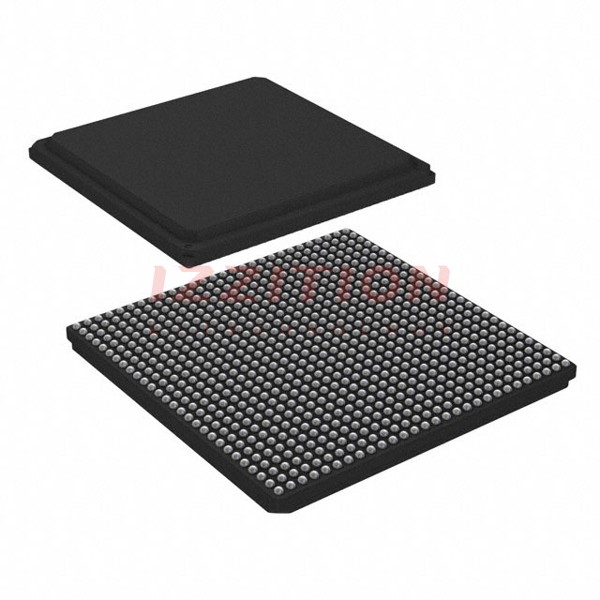

| Part Number | T2081NSN8TTB | T2081NXN8TTB | T2080NSN8TTB |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active |
| Core Processor | PowerPC e6500 | PowerPC e6500 | PowerPC e6500 |
| Number of Cores/Bus Width | 4 Core, 64-Bit | 4 Core, 64-Bit | 4 Core, 64-Bit |
| Speed | 1.8GHz | 1.8GHz | 1.8GHz |
| Co-Processors/DSP | - | - | - |
| RAM Controllers | DDR3, DDR3L | DDR3, DDR3L | DDR3, DDR3L |
| Graphics Acceleration | - | - | - |
| Display & Interface Controllers | - | - | - |
| Ethernet | 1Gbps (8), 2.5Gbps (4), 10Gbps (4) | 1Gbps (8), 2.5Gbps (4), 10Gbps (4) | 1Gbps (8), 2.5Gbps (4), 10Gbps (4) |
| SATA | SATA 3Gbps (2) | SATA 3Gbps (2) | SATA 3Gbps (2) |
| USB | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) |
| Voltage - I/O | - | - | - |
| Operating Temperature | 0°C ~ 105°C (TA) | 0°C ~ 105°C (TA) | 0°C ~ 105°C (TA) |
| Security Features | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage |
| Package / Case | 780-BFBGA, FCBGA | 780-BFBGA, FCBGA | 896-BFBGA, FCBGA |
| Supplier Device Package | 780-FBGA (23x23) | 780-FBGA (23x23) | 896-FCPBGA (25x25) |
