| Part Number | T1020NSE7PQB | T1020NSN7PQB | T1040NSE7PQB |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active |
| Core Processor | PowerPC e5500 | PowerPC e5500 | PowerPC e5500 |
| Number of Cores/Bus Width | 2 Core, 64-Bit | 2 Core, 64-Bit | 4 Core, 64-Bit |
| Speed | 1.4GHz | 1.4GHz | 1.4GHz |
| Co-Processors/DSP | - | - | - |
| RAM Controllers | DDR3L/4 | DDR3L/4 | DDR3L/4 |
| Graphics Acceleration | No | No | No |
| Display & Interface Controllers | - | - | - |
| Ethernet | 1Gbps (12) | 1Gbps (12) | 1Gbps (12) |
| SATA | SATA 3Gbps (2) | SATA 3Gbps (2) | SATA 3Gbps (2) |
| USB | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) |
| Voltage - I/O | - | - | - |
| Operating Temperature | 0°C ~ 105°C (TA) | 0°C ~ 105°C (TA) | 0°C ~ 105°C (TA) |
| Security Features | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage |

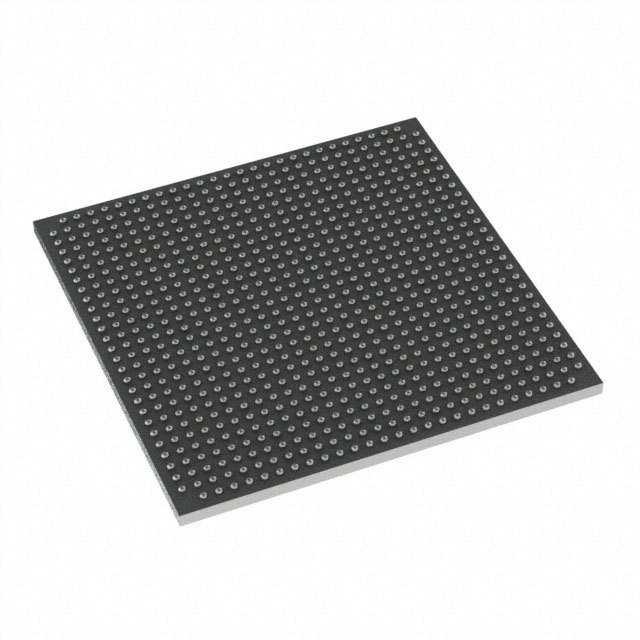

| Package / Case | 780-FBGA, FCBGA | 780-FBGA, FCBGA | 780-FBGA, FCBGA |
| Supplier Device Package | 780-FCPBGA (23x23) | 780-FCPBGA (23x23) | 780-FCPBGA (23x23) |
