| Part Number | SVF522R2K2CMK4 | SVF522R3K2CMK4 | SVF522R2K1CMK4 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active |
| Core Processor | ARM® Cortex®-A5 + Cortex®-M4 | ARM® Cortex®-A5 + Cortex®-M4 | ARM® Cortex®-A5 + Cortex®-M4 |
| Number of Cores/Bus Width | 2 Core, 32-Bit | 2 Core, 32-Bit | 2 Core, 32-Bit |
| Speed | 400MHz, 133MHz | 400MHz, 133MHz | 400MHz, 133MHz |
| Co-Processors/DSP | Multimedia; NEON™ MPE | Multimedia; NEON™ MPE | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, DDR3, DRAM | LPDDR2, DDR3, DRAM | LPDDR2, DDR3, DRAM |
| Graphics Acceleration | Yes | Yes | Yes |
| Display & Interface Controllers | DCU, GPU, LCD, VideoADC, VIU | DCU, GPU, LCD, VideoADC, VIU | DCU, GPU, LCD, VideoADC, VIU |
| Ethernet | 10/100Mbps (2) | 10/100Mbps (2) | 10/100Mbps (2) |
| SATA | - | - | - |
| USB | USB 2.0 OTG + PHY (1) | USB 2.0 OTG + PHY (1) | USB 2.0 OTG + PHY (1) |
| Voltage - I/O | 3.3V | 3.3V | 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Security Features | ARM TZ, Hashing, RNG, RTC, RTIC, Secure JTAG, SNVS, TZ ASC, TZ WDOG | ARM TZ, Hashing, RNG, RTC, RTIC, Secure JTAG, SNVS, TZ ASC, TZ WDOG | ARM TZ, Hashing, RNG, RTC, RTIC, Secure JTAG, SNVS, TZ ASC, TZ WDOG |

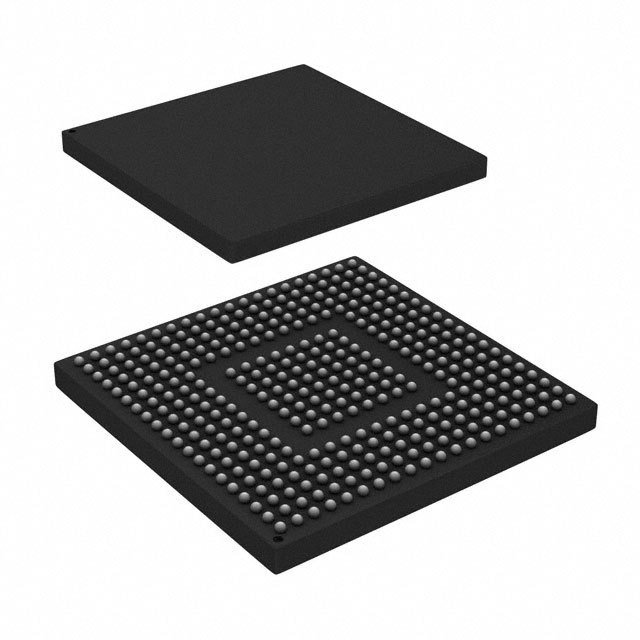

| Package / Case | 364-LFBGA | 364-LFBGA | 364-LFBGA |
| Supplier Device Package | 364-LFBGA (17x17) | 364-LFBGA (17x17) | 364-LFBGA (17x17) |
