| Part Number | SPC5747CK1CMJ6R | SPC5747CK1VMJ6R | SPC5747CK1MMJ6R | SPC5747CK1CMJ2R | SPC5747CK1CMJ6 |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | e200z2, e200z4 | e200z2, e200z4 | e200z2, e200z4 | e200z2, e200z4 | e200z2, e200z4 |
| Core Size | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core |
| Speed | 80MHz/160MHz | 80MHz/160MHz | 80MHz/160MHz | 80MHz/120MHz | 80MHz/160MHz |
| Connectivity | CANbus, Ethernet, I²C, LINbus, SAI, SPI, USB, USB OTG | CANbus, Ethernet, I²C, LINbus, SAI, SPI, USB, USB OTG | CANbus, Ethernet, I²C, LINbus, SAI, SPI, USB, USB OTG | CANbus, Ethernet, I²C, LINbus, SAI, SPI, USB, USB OTG | CANbus, Ethernet, I²C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT | DMA, LVD, POR, WDT | DMA, LVD, POR, WDT | DMA, LVD, POR, WDT | DMA, LVD, POR, WDT |
| Number of I/O | 178 | 178 | 178 | 178 | 178 |
| Program Memory Size | 4MB (4M x 8) | 4MB (4M x 8) | 4MB (4M x 8) | 4MB (4M x 8) | 4MB (4M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 512K x 8 | 512K x 8 | 512K x 8 | 512K x 8 | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 80x10b, 64x12b | A/D 80x10b, 64x12b | A/D 80x10b, 64x12b | A/D 80x10b, 64x12b | A/D 80x10b, 64x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

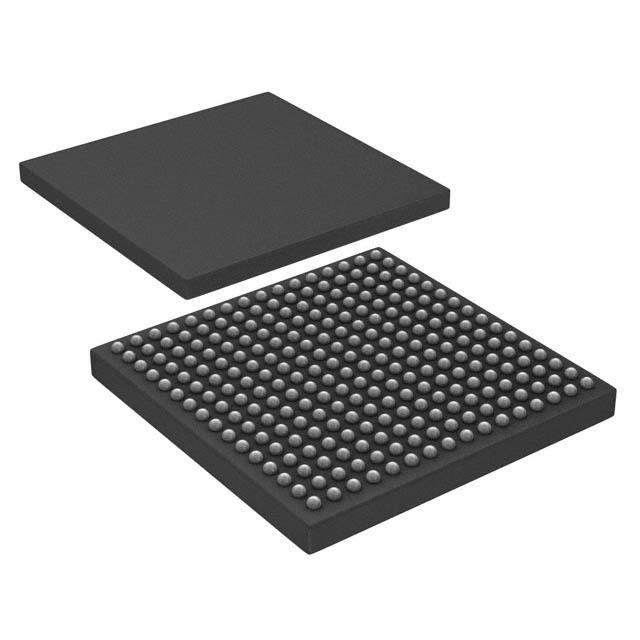

| Package / Case | 256-LBGA | 256-LBGA | 256-LBGA | 256-LBGA | 256-LBGA |
| Supplier Device Package | 256-MAPPBGA (17x17) | 256-MAPPBGA (17x17) | 256-MAPPBGA (17x17) | 256-MAPPBGA (17x17) | 256-MAPPBGA (17x17) |
