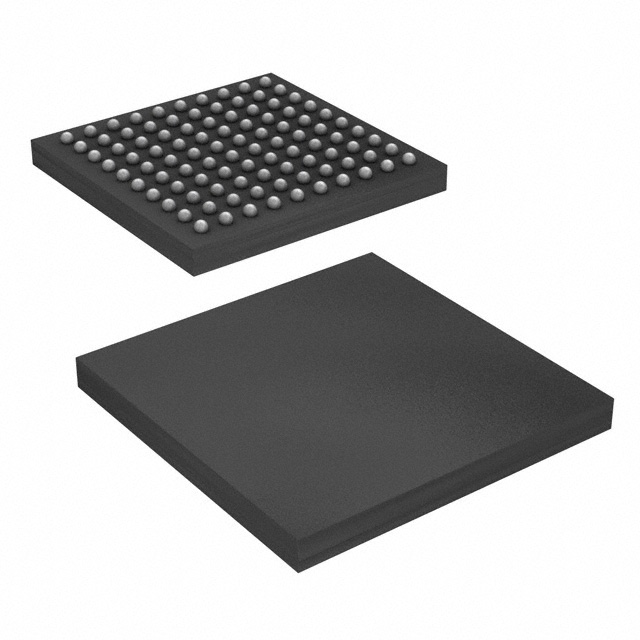

| Part Number | SPC5744CFK1ACMH6 | SPC5746CFK1ACMH6 | SPC5744CBK1ACMH6 | SPC5744CFK1ACMH2 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active |
| Core Processor | e200z2, e200z4 | e200z2, e200z4 | e200z2, e200z4 | e200z2, e200z4 |
| Core Size | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core |
| Speed | 80MHz, 160MHz | 80MHz, 200MHz | 80MHz, 160MHz | 80MHz, 120MHz |
| Connectivity | CANbus, Ethernet, FlexRay, I²C, LINbus, SPI | CANbus, Ethernet, I²C, LINbus, SAI, SPI, USB, USB OTG | CANbus, Ethernet, FlexRay, I²C, LINbus, SPI | CANbus, Ethernet, FlexRay, I²C, LINbus, SPI |
| Peripherals | DMA, I²S, POR, WDT | DMA, LVD, POR, WDT | DMA, I²S, POR, WDT | DMA, I²S, POR, WDT |
| Number of I/O | 65 | 65 | 65 | 65 |
| Program Memory Size | 1.5MB (1.5M x 8) | 3MB (3M x 8) | 1.5MB (1.5M x 8) | 1.5MB (1.5M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | 64K x 8 | 128K x 8 | 64K x 8 | 64K x 8 |
| RAM Size | 192K x 8 | 384K x 8 | 192K x 8 | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 5.5V | 3.15V ~ 5.5V | 3.15V ~ 5.5V | 3.15V ~ 5.5V |
| Data Converters | A/D 36x10b, 16x12b | A/D 36x10b, 16x12b | A/D 36x10b, 16x12b | A/D 36x10b, 16x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-LFBGA | 100-LFBGA | 100-LFBGA | 100-LFBGA |
| Supplier Device Package | 100-MAPBGA (11x11) | 100-MAPBGA (11x11) | 100-MAPBGA (11x11) | 100-MAPBGA (11x11) |
