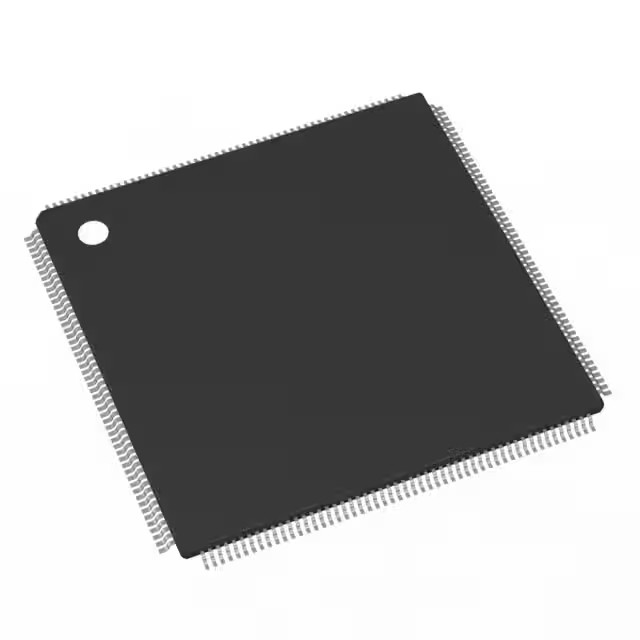

| Part Number | SPC5644CF0VLT1R | SPC5644CF0VLU1R | SPC5645CF0VLT1R | SPC5646CF0VLT1R | SPC5644CF0MLT1R | SPC5644CF0VLT1 |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Active | Active | Obsolete | Active | Obsolete |
| Core Processor | e200z4d, e200z0h | e200z4d, e200z0h | e200z4d, e200z0h | e200z4d, e200z0h | e200z4d, e200z0h | e200z4d, e200z0h |
| Core Size | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core |
| Speed | 80MHz/120MHz | 80MHz/120MHz | 80MHz/120MHz | 80MHz/120MHz | 80MHz/120MHz | 80MHz/120MHz |
| Connectivity | CANbus, Ethernet, I²C, LINbus, SCI, SPI | CANbus, Ethernet, I²C, LINbus, SCI, SPI | CANbus, Ethernet, I²C, LINbus, SCI, SPI | CANbus, Ethernet, I²C, LINbus, SCI, SPI | CANbus, Ethernet, I²C, LINbus, SCI, SPI | CANbus, Ethernet, I²C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT |
| Number of I/O | 177 | 147 | 177 | 177 | 177 | 177 |
| Program Memory Size | 1.5MB (1.5M x 8) | 1.5MB (1.5M x 8) | 2MB (2M x 8) | 3MB (3M x 8) | 1.5MB (1.5M x 8) | 1.5MB (1.5M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 |
| RAM Size | 192K x 8 | 192K x 8 | 256K x 8 | 256K x 8 | 192K x 8 | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 33x10b, 10x12b | A/D 27x10b, 5x12b | A/D 33x10b, 10x12b | A/D 33x10b, 10x12b | A/D 33x10b, 10x12b | A/D 33x10b, 10x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 208-LQFP | 176-LQFP | 208-LQFP | 208-LQFP | 208-LQFP | 208-LQFP |
| Supplier Device Package | 208-TQFP (28x28) | 176-LQFP (24x24) | 208-TQFP (28x28) | 208-TQFP (28x28) | 208-TQFP (28x28) | 208-TQFP (28x28) |
