| Part Number | SP5746CBK1AMKU6R | SP5746CSK1AMKU6R | SP5746CBK1AVKU6R | SP5746CHK1AMKU6R |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active |
| Core Processor | e200z2, e200z4 | e200z2, e200z4 | e200z2, e200z4 | e200z2, e200z4 |
| Core Size | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core |
| Speed | 80MHz/160MHz | 80MHz/160MHz | 80MHz/160MHz | 80MHz/160MHz |
| Connectivity | CANbus, Ethernet, I²C, LINbus, SAI, SPI, USB, USB OTG | CANbus, Ethernet, I²C, LINbus, SAI, SPI, USB, USB OTG | CANbus, Ethernet, I²C, LINbus, SAI, SPI, USB, USB OTG | CANbus, Ethernet, I²C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT | DMA, LVD, POR, WDT | DMA, LVD, POR, WDT | DMA, LVD, POR, WDT |
| Number of I/O | 129 | 129 | 129 | 129 |
| Program Memory Size | 3MB (3M x 8) | 3MB (3M x 8) | 3MB (3M x 8) | 3MB (3M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 512K x 8 | 512K x 8 | 512K x 8 | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 80x10b, 64x12b | A/D 80x10b, 64x12b | A/D 80x10b, 64x12b | A/D 80x10b, 64x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

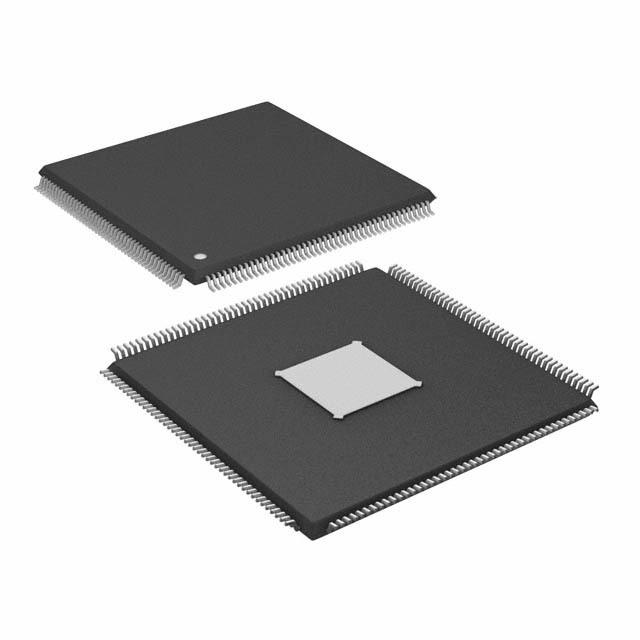

| Package / Case | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad | 176-LQFP Exposed Pad |
| Supplier Device Package | 176-LQFP (24x24) | 176-LQFP (24x24) | 176-LQFP (24x24) | 176-LQFP (24x24) |
